Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN 500 EFI - A09MN50AN/AX
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE INTERNALS
5

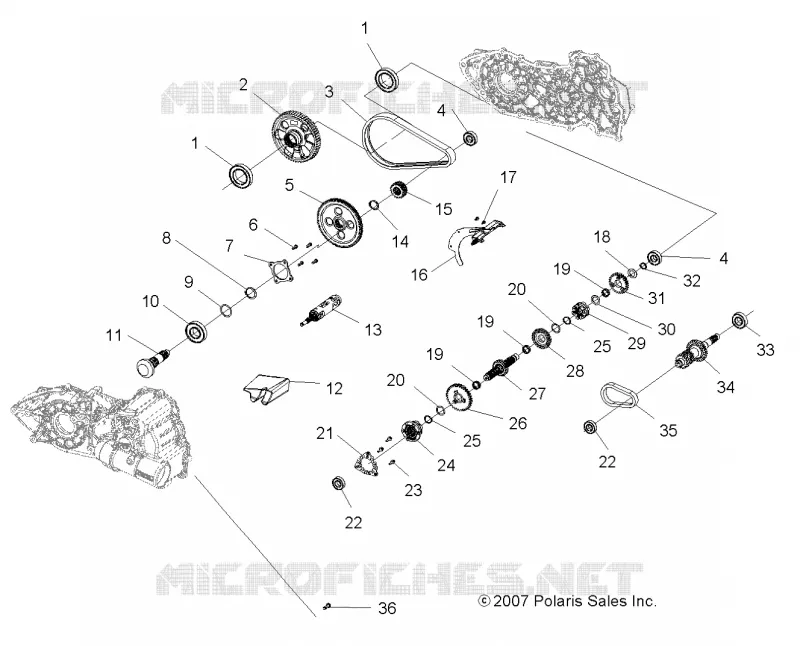

Parts Diagram
Parts Catalog
CHASSIS, FRAME
by
DRIVE TRAIN, MAIN GEARCASE MOUNTING
DRIVE TRAIN, MAIN GEARCASE INTERNALS
-
1
1
2
3
4
4
5
36
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
20
20
21
22
22
23
24
25
25
26
27
28
29
30
31
32
33
34
35
36
-
Asm. Gearcase [Incl. All]
1332626
Not Available
1
BEARING BALL 6010 C3 50 X 80 X 10
3233268
$88,19 Unit Price incl. VAT
2
Subasm. Shaft 59T Final Output w/Bearings [Incl. 2 of Ref. 18]
3234421
$1 280,99 Unit Price incl. VAT
3
CHAIN SILENT 17 WIDE X 1.0 X 86p
3234057
$519,74 Unit Price incl. VAT
4
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
5
GEAR OUTPUT 91T HRC
3234062
$493,49 Unit Price incl. VAT
6
SCREW TORX TRUSS HD 43834 X 0.75
3234086
$10,49 Unit Price incl. VAT
7
COVER BEARING CENTER DRIVE
3234063
$62,99 Unit Price incl. VAT
8
RING RETAINING SHAFT DIA. 1.375
3233364
$12,59 Unit Price incl. VAT
9
Spacer
3234064
Not Available
10
BEARING BALL 6207 C3 35MMX72MMX17MM
3234065
$80,84 Unit Price incl. VAT
11
Shaft Center Drive
3234066
Not Available
12
Baffle Oil
3234088
$48,92 Unit Price incl. VAT
13
DRUM SHIFT MACH
3234360
$335,99 Unit Price incl. VAT
14
RING RETAINING IRR 7200-118
3233699
$13,64 Unit Price incl. VAT
15
SPROCKET 19T 1.00#
3234060
$451,49 Unit Price incl. VAT
16
DEFLECTOR OIL
3234061
3239943
$52,49 Unit Price incl. VAT
17
SCREW TAPPING TORX PH 11902 X.50
3233749
$10,49 Unit Price incl. VAT
18
WASHER THRUST 1.270 X 0.793 X 0.065
3233176
$17,84 Unit Price incl. VAT
19
BEARING NEEDLE
3233718
$60,89 Unit Price incl. VAT
20
WASHER
3233851
$19,94 Unit Price incl. VAT
21
PLATE PARK 12 FACE
3233915
$73,49 Unit Price incl. VAT
22
Bearing Ball
3234074
Not Available
23
SCREW
3233826
$17,84 Unit Price incl. VAT
24
ENGAGEMENT DOG 6-FACE L/P
3234257
$283,49 Unit Price incl. VAT
25
RING RETAINING
3233850
$19,94 Unit Price incl. VAT
26
GEAR LOW 67T
3233852
$456,74 Unit Price incl. VAT
27
SHAFT REVERSE 26T
3234071
$467,24 Unit Price incl. VAT
28
SPROCKET 38T 6-FACE
3233854
$257,24 Unit Price incl. VAT
29
DOG ENGAGEMENT 6 FACE
3234258
$178,49 Unit Price incl. VAT
30
WASHER 1.250 X 0.876 X 0.05
3233855
$19,94 Unit Price incl. VAT
31
PLATE ARMATURE
3234068
$493,49 Unit Price incl. VAT
32
RING RETAINING BASIC EXTERNAL .787 SHAFT
3234067
$14,69 Unit Price incl. VAT
33
BEARING
3233019
$54,59 Unit Price incl. VAT
34
Asm. Input Shaft
3234075
$519,74 Unit Price incl. VAT
35
CHAIN SILENT 34P
3233036
Not Available
36
SCREW TORX TRUSS HD 43834 X 0.75
3234086
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
