1
Engine displacement
500
2
Year
2004
3
Trim
A04BG50AA SCRAMBLER 500 4X4 - A04BG50AA/FA
4
Parts Catalog

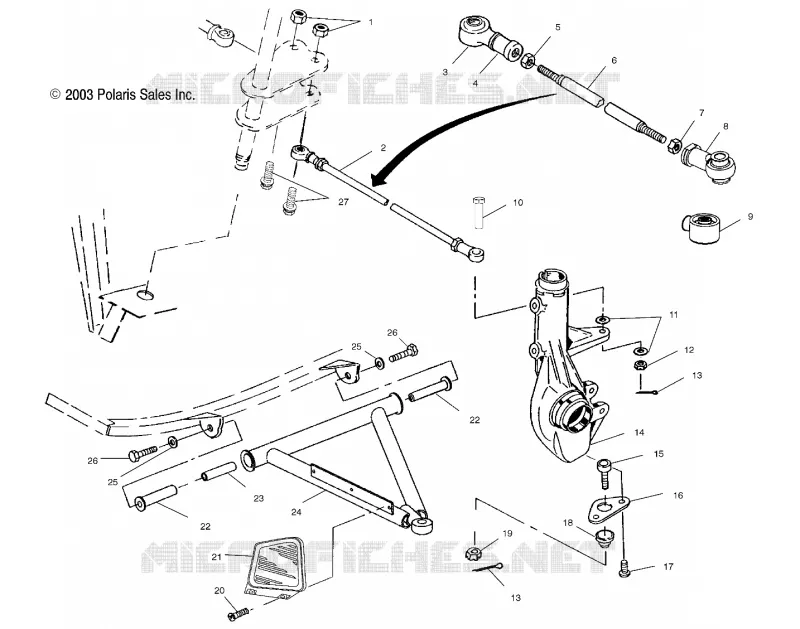

WISHBONES
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
REAR CALIPER MOUNTING
WISHBONES
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
21
22
22
23
24
24
25
25
26
26
27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
2
3
4
5
5
6
6
7
7
8
9
9
10
10
11
11
12
12
12
12
12
12
13
14
15
16
17
18
18
19
20
21
22
22
23
23
24
25
26
27
1
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
2
Asm. Tie Rod [Incl. 3-9]
1820805
1822852
$246,74 Unit Price incl. VAT
3
Boot Seal Rod End
5411291
5412928
$20,99 Unit Price incl. VAT
4
Rod End
7061034
7061139
$115,49 Unit Price incl. VAT
5
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
6
Tie Rod
5020926
$83,99 Unit Price incl. VAT
7
NUT-1/2-20 LH JAM
7547028
$4,19 Unit Price incl. VAT
8
ROD END [INCL. 1]
7061054
7061138
$104,99 Unit Price incl. VAT
9
BOOT SEAL ROD END
5411920
5412929
$20,99 Unit Price incl. VAT
10
SCR-HXFL-M10X1.25X65 10.9 ZY3
7517909
$10,49 Unit Price incl. VAT
11
WASHER-FL 10.7X21.9X2.5-Y
7556099
$3,14 Unit Price incl. VAT
12
NUT-M10X1.25-HX-LOCK-Y(10)
7547177
7548155
$1,56 Unit Price incl. VAT
13
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
BALL-JOINT 52 DEG ATV (If built after 11/01/00)
7080927
7061306
$52,49 Unit Price incl. VAT
16
BRACKET-BALL JOINT
5211121
$62,99 Unit Price incl. VAT
17
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
$2,09 Unit Price incl. VAT
18
BOOT RUBBER
5410548
5412658
$9,44 Unit Price incl. VAT
19
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
20
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
21
Shield CV Joint LH
5431150070
$47,24 Unit Price incl. VAT
21
Shield CV Joint RH
5431149070
$47,24 Unit Price incl. VAT
22
Bushing A-Arm Long
5434551
5436973
$9,44 Unit Price incl. VAT
23
Shaft A-Arm
5133806
$52,49 Unit Price incl. VAT
24
Kit A-Frame RH
2202285216
2202285-067
$241,49 Unit Price incl. VAT
24
Kit A-Frame LH
2202284216
2202284-067
$241,49 Unit Price incl. VAT
25
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
26
SCREW
7512492
$2,09 Unit Price incl. VAT
27
SCREW
7515415
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
