1
Engine displacement
500
2
Year
2004
3
Trim
A04BG50AA SCRAMBLER 500 4X4 - A04BG50AA/FA
4
Parts Catalog

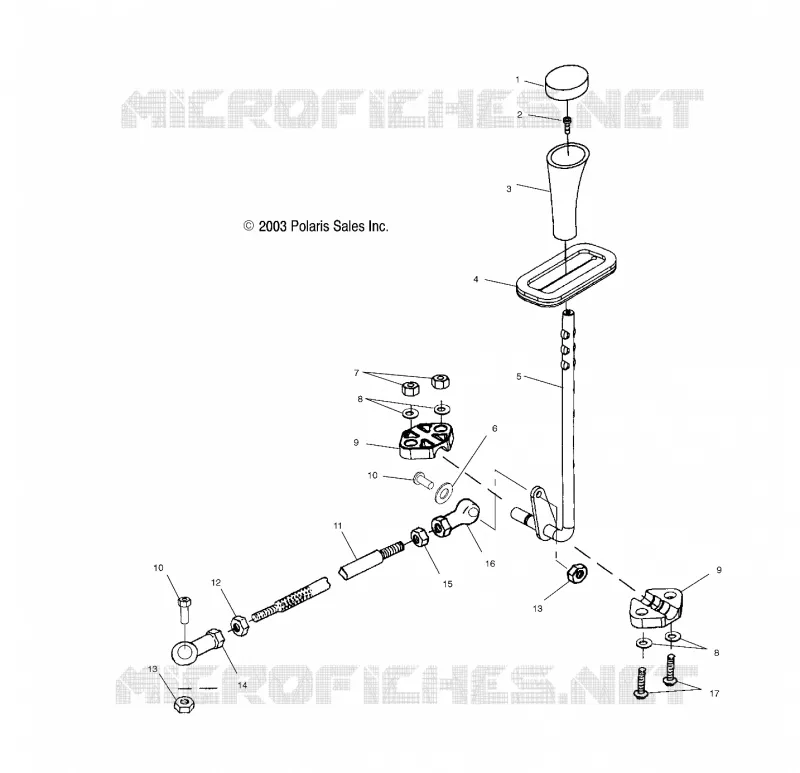

GEAR SELECTOR
5
Parts Diagram
Parts Catalog
FUEL PUMP
by
GEARCASE MOUNTING
GEAR SELECTOR
1
2
3
4
5
6
7
8
8
9
9
10
10
11
11
12
13
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Cover Shift Knob
5411006
3233198
$68,24 Unit Price incl. VAT
2
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
3
KNOB GEAR SILECTOR SHIFT
5411007
3233198
$68,24 Unit Price incl. VAT
4
GROMMET HR SHIFTER
5411008
Not Available
5
GEAR SELECTOR SCR 500 BLK
1012797067
$79,47 Unit Price incl. VAT
6
WASHER
7556250
$9,44 Unit Price incl. VAT
7
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
8
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
9
MOUNT GEAR SELECTOR
5435042
$12,59 Unit Price incl. VAT
10
Bolt (If built after 8/22/01)
7518001
$4,19 Unit Price incl. VAT
11
Asm. Shift Linkage (If built after 8/22/01)
1821206
Not Available
11
Linkage Shift [If built after 12/29/03]
1821489
Not Available
12
NUT JAM [RH]
7547083
$10,49 Unit Price incl. VAT
13
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
14
Rod End RH [If built after 8/22/01]
7061102
Not Available
15
NUT JAM LH
7547198
$10,49 Unit Price incl. VAT
16
Rod End LH [If built after 8/22/01]
7061101
Not Available
17
BOLT(10) Substituted by 7515352
7515306
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
