1
Engine displacement
500
2
Year
2004
3
Trim
A04BG50AA SCRAMBLER 500 4X4 - A04BG50AA/FA
4
Parts Catalog
COOLING SYSTEM
5

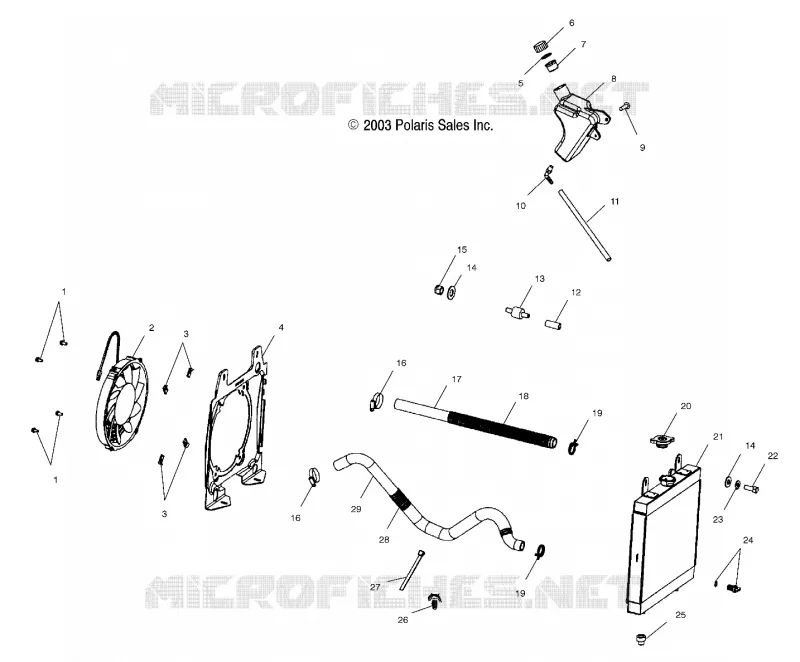

Parts Diagram
Parts Catalog
by
EXHAUST SYSTEM
COOLING SYSTEM
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
2
3
4
4
4
4
5
6
7
8
9
10
1
Screw
7517659
$7,34 Unit Price incl. VAT
2
Asm. Fan and Motor
2410430
Not Available
3
U-Clip
7670111
Not Available
4
SHROUD-FAN
5434043
$119,16 Unit Price incl. VAT
5
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
6
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
7
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
$10,49 Unit Price incl. VAT
8
Tank Surge
5433410
Not Available
9
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
10
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
11
DESC NOT_AVAILABLE
8450003600
Not Available
12
SPACER RADIATOR MNT
5020937
Not Available
13
MOUNT RUBBER
3110032
$15,74 Unit Price incl. VAT
14
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
15
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
16
CLAMP HOSE WORM GEAR 1.25
7080614
$13,64 Unit Price incl. VAT
17
HOSE-UPPER ENGINE
5411985
$106,56 Unit Price incl. VAT
18
Guard Hose
5521511
$11,96 Unit Price incl. VAT
19
Clamp Roto Clip
7080826
$9,44 Unit Price incl. VAT
20
Cap Pressure
1240093
Not Available
21
Radiator
1240177
Not Available
22
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
23
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
24
Valve Plastic Radiator/Cooler Drain
7052296
Not Available
25
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
26
MOUNT CABLE TIE
7080965
$13,64 Unit Price incl. VAT
27
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
28
Guard Hose
5521550
$19,94 Unit Price incl. VAT
29
HOSE-LOWER ENGINE
5411989
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
