1
Engine displacement
500
2
Year
2005
3
Trim
SPORTSMAN 6X6 - A05CL50AA
4
Parts Catalog
FRONT HOUSING
5
Parts Diagram
Parts Catalog
FRONT RACK BUMPER MOUNTING
by
CONTROLS

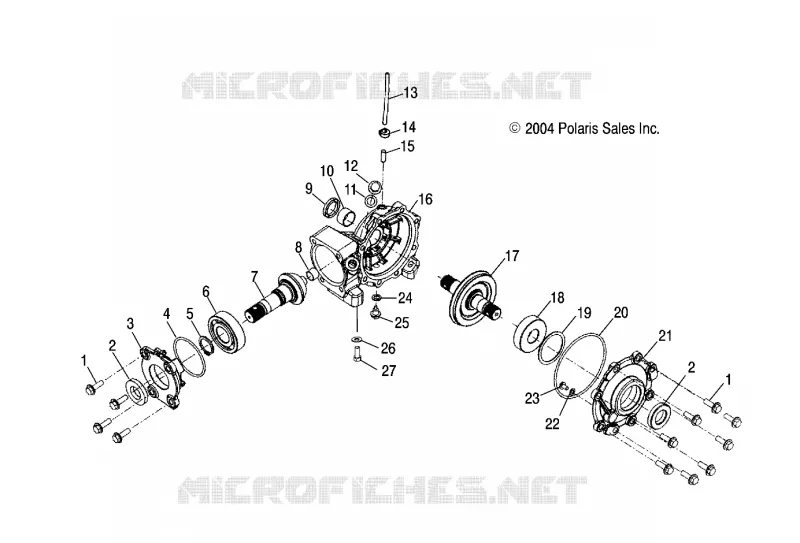

FRONT HOUSING
-
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
-
GEARCASE FRONT ASM. (Incl. 1-12 16-26) NOTE: Used on Machines Built After 7/01/99.
1341323
$1 900,49 Unit Price incl. VAT
1
SCREW
3233252
$9,44 Unit Price incl. VAT
2
SEAL
3233248
3233788
$57,74 Unit Price incl. VAT
3
INPUT COVER-FRONT HOUSING
3233701
Not Available
4
O-RING
3233700
Not Available
5
RING RETAINING IRR 7200-118
3233699
$13,64 Unit Price incl. VAT
6
BEARING BALL
3233589
$101,84 Unit Price incl. VAT
7
PINION INPUT 14T
3233726
Not Available
8
BUSHING GARLOCK
3233541
$41,99 Unit Price incl. VAT
9
SEAL
3233319
$52,49 Unit Price incl. VAT
10
BUSHINHG-GARLOCK
3233697
Not Available
11
WASHER
3233324
$13,64 Unit Price incl. VAT
12
PLUG OIL FILL
3233711
Not Available
13
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
14
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
15
Tube Vent Hose
3233524
$15,74 Unit Price incl. VAT
16
GEARCASE
3233696
Not Available
17
SHAFT OUTPUT 29T
3233725
Not Available
18
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
19
Shim
3233554
$62,99 Unit Price incl. VAT
20
O-RING
3233693
Not Available
21
COVER OUTPUT
3233724
Not Available
22
SHIM .450 X .265
3233583
$52,49 Unit Price incl. VAT
23
THRUST BUTTON
3233582
$13,64 Unit Price incl. VAT
24
PLUG WASHER
3233254
$14,69 Unit Price incl. VAT
25
PLUG DRAIN Substituted by 3233777
3233253
$52,49 Unit Price incl. VAT
26
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
27
SCREW
7512492
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
