1
Engine displacement
650
2
Year
1989
3
Trim
650-sks-0890558
4
Parts Catalog

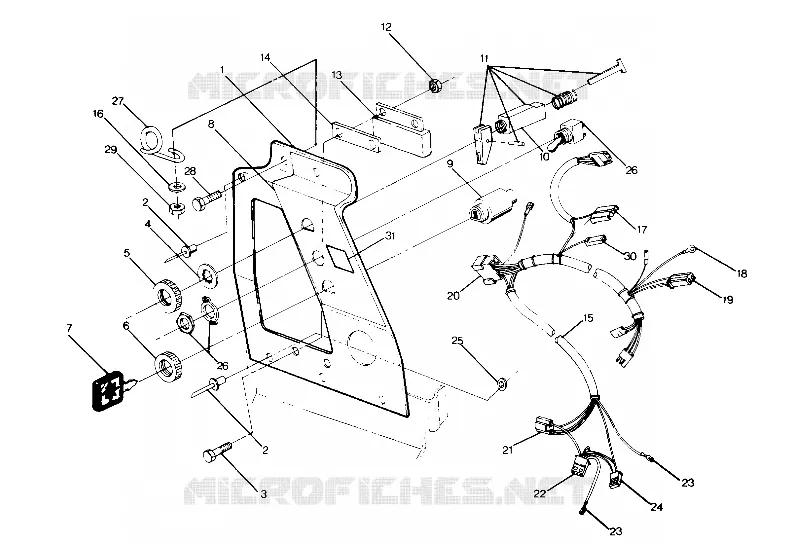

CONSOLE 400, 500, 500 CLASSIC AND 650 (4915411541008A)
5
Parts Diagram
Parts Catalog
NOSE PAN 400, 500, 500 Classic and 650 Updated 10/88 (4915411541007A)
by
FRONT SUSPENSION AND SKI 400, 500, 500 CLASSIC AND 650 UPDATED 10/88 (4915411541009A)
CONSOLE 400, 500, 500 CLASSIC AND 650 (4915411541008A)
1
CONSOLE(SWED#87INDY) [No Longer Available] (All Models)
5220959
Not Available
1
CONSOLE Substituted by 5222495-067
5220686
Not Available
2
RIVET-POP3/16X.402(.126-.250)
7621425
$2,09 Unit Price incl. VAT
3
BOLT
7512007
$7,34 Unit Price incl. VAT
4
Washer Inter Lock
7571610
$7,34 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
NUT-IGNITION SWITCH
7542807
Not Available
7
KEY IGNITION
5410378
$27,29 Unit Price incl. VAT
8
DECAL CONSOLE [No Longer Available]
7072421
Not Available
8
DECAL CONSOLE E/S [No Longer Available] (Trail)
7072420
Not Available
9
SWITCH IGNITION
4110038
$83,99 Unit Price incl. VAT
9
SWITCH-E/S (Twin ES)
4110061
Not Available
10
CABLE CHOKE (600 600 SE)
7080283
$167,99 Unit Price incl. VAT
10
CABLE CHOKE
7080290
$194,24 Unit Price incl. VAT
11
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
11
KIT CHOKE CONTROL (600 600 SE)
2200189
$47,24 Unit Price incl. VAT
12
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
13
REGULATOR - MINKS
4060071
Not Available
14
HEAT SINK
5210650
Not Available
15
HARNESS MAIN WIRE (400 & 650)
2460262
Not Available
15
HARNESS MAIN WIRE [No Longer Available] (Classic)
2460258
Not Available
16
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
17
TERMINAL
4020113
Not Available
17
CONNECTOR BRAKE SWITCH
4020112
Not Available
18
TERMINAL RING Substituted by 4020092
2200029
Not Available
19
HOUSING 2 CIRCUIT W/REC [No Longer Available]
2200020
Not Available
20
HOUSING W/RECEPTACLES
2200039
Not Available
21
HOUSING 3 CIRCUIT W/REC
2200022
Not Available
22
CONNECTOR TACH.
2200094
Not Available
23
RECEPTACLE
4020061
Not Available
24
KIT HOUSING 2 CIRCUIT
2200095
Not Available
25
WASHER FLAT
7558212
$1,56 Unit Price incl. VAT
26
SW HEATER HI-LOW (650 & 500 Classic Only)
4110077
Not Available
27
MT. RECOIL
5224296
Not Available
28
BOLT-CARRIAGE(10)
7512263
$7,34 Unit Price incl. VAT
29
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
30
CONNECTOR-TEMP.LIGHT (400 600 600 SE)
2200177
Not Available
31
SWITCH TETHER
2870668
$125,99 Unit Price incl. VAT
31
Desc not available [No Longer Available]
2460239
Not Available
31
DECAL HI-LO GRIP HTR. [No Longer Available] (500 Classic & 650 Only)
7072669
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
