1
Engine displacement
650
2
Year
1989
3
Trim
650-sks-0890558
4
Parts Catalog

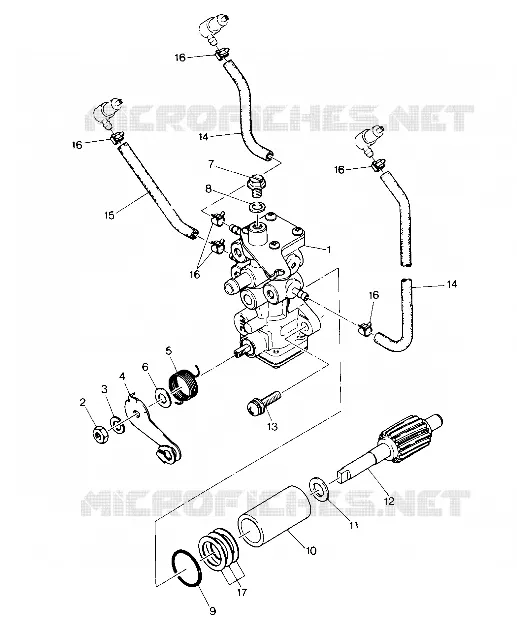

OIL PUMP 650 (4915411541051A)
5
Parts Diagram
Parts Catalog
OIL PUMP 500 AND 500 CLASSIC (4915411541050A)
by
CARBURETOR 650 (4915411541057A)
OIL PUMP 650 (4915411541051A)
1
OIL PUMP ASM. (Incl. 2-9)
3083864
$217,86 Unit Price incl. VAT
2
NUT
3083120
$6,29 Unit Price incl. VAT
3
WASHER SPRING
3083121
1205792
$614,24 Unit Price incl. VAT
4
LEVER CONTROL
3083865
Not Available
5
SPRING-RETURN
3083123
Not Available
6
COLLAR CAMSHAFT Substituted by 3083445
3083404
Not Available
7
SCREW-AIR VENT
3083125
Not Available
8
PACKING(10)
3083126
$7,34 Unit Price incl. VAT
9
O RING
3083127
Not Available
10
BUSHING(OIL PUMP)
3083353
$54,59 Unit Price incl. VAT
11
SPACER
3083130
$3,14 Unit Price incl. VAT
12
GEAR SMALL OIL PUMP
3083131
5141635
$141,74 Unit Price incl. VAT
13
SCREW&WASHER (10)
3083783
$4,19 Unit Price incl. VAT
14
PIPE VINYL Substituted by 3083488
3083486
Not Available
15
PIPE VINYL Substituted by 3083488
3083487
Not Available
16
CLAMP HOSE
3083141
$2,09 Unit Price incl. VAT
17
SPACER 3 .6MM
3083673
5141621
$8,39 Unit Price incl. VAT
17
SPACER 2 .3MM
3083672
5141620
$6,29 Unit Price incl. VAT
17
SPACER 1 .15MM
3083671
5141619
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
