1
Engine displacement
650
2
Year
1988
3
Trim
NOR 650 SKS - N880558
4
Parts Catalog
STARTER CLASSIC (4914131413043A)
5
Parts Diagram
Parts Catalog
CARBURETOR 650 (4914131413042A)
by
CHASSIS AND SEAT ALL SWEDISH INDY MODELS (4914521452009A)

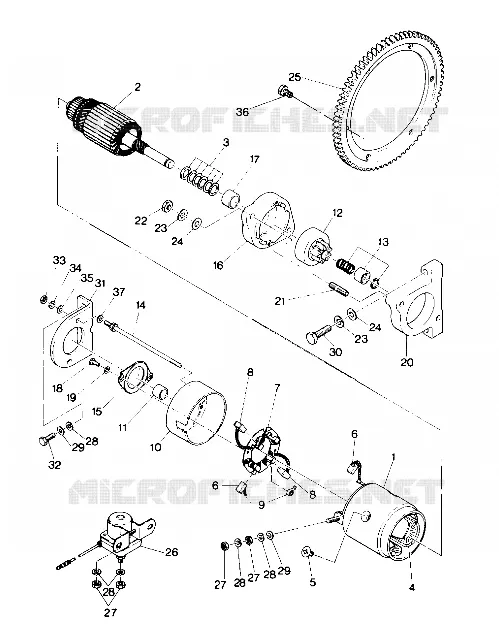

STARTER CLASSIC (4914131413043A)
1
MOTOR-STARTER (Incl. 2-19 27-29) (Twin ES)
3083189
Not Available
2
ARMATURE ASM Substituted by 3084115 (Twin ES)
3083190
Not Available
3
KIT-WASHER (Twin ES)
3083191
Not Available
4
COIL-FIELD (Incl. 5 6) (Twin ES)
3083192
Not Available
5
SCREW-POLE CORE SET (Twin ES)
3083193
Not Available
6
BRUSH (+) (+) (Twin ES)
3083194
Not Available
7
HOLDER ASM BRUSH (Incl. 8 9) (Twin ES)
3083195
Not Available
8
BRUSH (-) (-) (Twin ES)
3083196
Not Available
9
SPRING-BRUSH (Twin ES)
3083197
Not Available
10
COVER ASM-REAR (Incl. 11) (Twin ES)
3083198
Not Available
11
COVER-REAR METAL (Twin ES)
3083199
Not Available
12
PINION ASM (Twin ES)
3083201
Not Available
13
SET-PINION STOPPER Substituted by 3084116 (Twin ES)
3083202
Not Available
14
BOLT-THROUGH (Twin ES)
3083203
Not Available
15
COVER-DUST (Twin ES)
3083204
Not Available
16
COVER ASM-FRONT. (Incl. 17) (Twin ES)
3083205
Not Available
17
BUSHING METAL FRONT (Twin ES)
3083206
Not Available
18
SCREW (Twin ES)
3083207
Not Available
19
WASHER-SPRING(10) (Twin ES)
3083208
Not Available
20
BRACKET (Twin ES)
3083535
Not Available
21
STUD (Twin ES)
3083210
Not Available
22
NUT Substituted by 3081086 (Twin ES)
3080048
Not Available
23
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
24
WASHER(10)
3080142
Not Available
25
GEAR RING (Twin ES)
3083075
Not Available
26
SWITCH-MAGNETIC Substituted by 3085521 (Incl. 27 28) (Twin ES)
3083211
4011335
$115,49 Unit Price incl. VAT
27
NUT(10)
3082939
Not Available
28
WASHER SPRING(10)
3080077
$4,19 Unit Price incl. VAT
29
WASHER(10)
3080078
Not Available
30
BOLT (Twin ES)
3083229
Not Available
31
BRACKET #1 (Twin ES)
3083213
$35,69 Unit Price incl. VAT
32
BOLT(10) [No Longer Available] (Twin ES)
3083214
Not Available
33
NUT(10) (Twin ES)
3083042
Not Available
34
WASHER SPRING(10)
3083133
Not Available
35
WASHER Substituted by 3083774
3083134
Not Available
36
SCREW(10)
7515314
Not Available
37
WASHER
3083357
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
