1
Engine displacement
650
2
Year
1988
3
Trim
NOR 650 SKS - N880558
4
Parts Catalog
WATER PUMP 650 (4914131413036A)
5
Parts Diagram
Parts Catalog
WATER PUMP 400 (4914131413035A)
by
CARBURETOR 400 (4914131413041A)

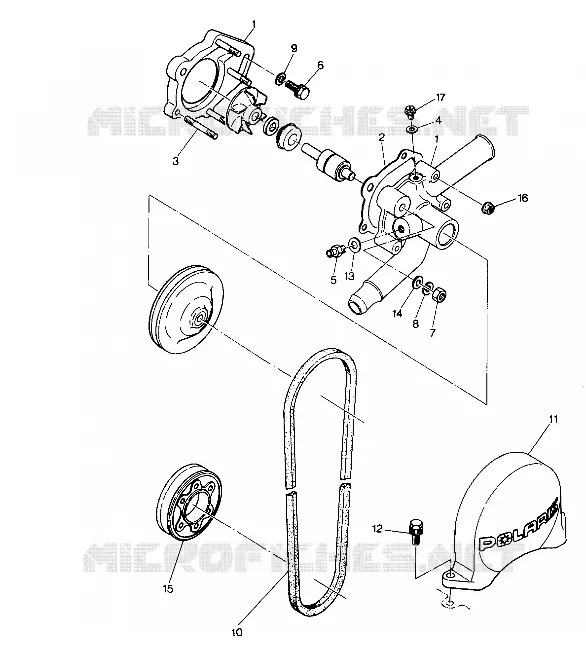

WATER PUMP 650 (4914131413036A)
1
PUMP WATER * (Incl. 2-5 13 16-19)
3083861
Not Available
2
GASKET
3082950
Not Available
3
STUD
3083071
Not Available
4
GASKET ALUM (10) Substituted by 7555998
3082758
7555998
$2,09 Unit Price incl. VAT
5
CONNECTOR
3080641
Not Available
6
BOLT&WASHER ASM.
3083370
Not Available
7
NUT(10) Substituted by 3080119
3083072
Not Available
8
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
9
WASHER
3082505
Not Available
10
BELT
3082747
$102,47 Unit Price incl. VAT
11
COVER WATER PUMP
3083403
Not Available
12
BOLT&WASHER ASM.
3083862
$2,09 Unit Price incl. VAT
13
GASKET ALUMINUM(10)
3083482
Not Available
14
WASHER(10)
3080142
Not Available
15
PULLEY DRIVE
3083863
Not Available
16
NUT FLANGE
3083856
$4,19 Unit Price incl. VAT
17
PLUG AIR VENT Substituted by 7517266
3083350
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
