1
Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN 800 EFI 6X6 - A09CL76AA
4
Parts Catalog
DUMP BOX
5

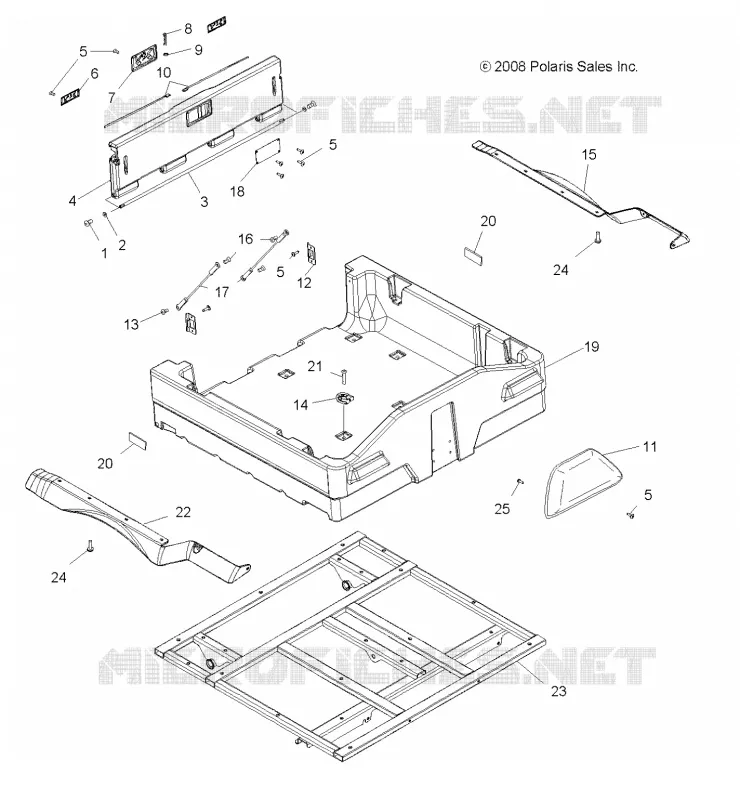

Parts Diagram
Parts Catalog
REAR SUSPENSION
by
DUMP BOX LEVER SHOCK MOUNTING
DUMP BOX
1
2
3
4
5
5
5
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
24
25
1
1
2
3
3
3
4
5
6
7
8
9
10
11
11
11
12
13
14
15
16
1
SCREW-1/4-20x3/4 BH TRX GR5-Z
7515177
$5,76 Unit Price incl. VAT
2
WASHER-.270X1.25X.060 FL-Y
7558221
$4,19 Unit Price incl. VAT
3
ROD HINGE TAILGATE 6X6
5132358
$99,74 Unit Price incl. VAT
4
TAILGATE PLASTIC 6X6
5433388
$745,49 Unit Price incl. VAT
5
SCR-#10X.75 TR/PH/TAP AB-M
7517561
$3,14 Unit Price incl. VAT
6
LATCH FLSHBLT TLGATE BLK
5433656
$120,74 Unit Price incl. VAT
7
Latch Paddle Tailgate
5433655
$152,24 Unit Price incl. VAT
8
PIN HITCH
7661644
$4,19 Unit Price incl. VAT
9
Washer Rubber w/Metal Back
7556143
$9,44 Unit Price incl. VAT
10
SHFT TLGATELTCH 5/16 ZINC
5132373
$23,09 Unit Price incl. VAT
11
BACKREST BLK ASM.
2682522070
$335,99 Unit Price incl. VAT
11
Covering Backrest
2681664070
$88,19 Unit Price incl. VAT
12
Bracket Box Latch
5243304
$31,49 Unit Price incl. VAT
13
Screw
7517938
$2,40 Unit Price incl. VAT
14
Ring Tie Down
7081101
$14,69 Unit Price incl. VAT
15
Guard Mud Box Black LH
5437873070
Not Available
16
SCREW1/4-20X3/4PA PN LK G2-Y
7517742
$10,49 Unit Price incl. VAT
17
Cable Tailgate
7080881
$73,49 Unit Price incl. VAT
18
Cover Tailgate Black
5244068067
$62,99 Unit Price incl. VAT
19
Box Molded Black [Incl. Warning Decal]
5437912070
Not Available
20
Decal Reflector 2.88 Red
7079925
$15,74 Unit Price incl. VAT
21
Screw (If built before 7/23/01)
7517686
$3,14 Unit Price incl. VAT
22
Guard Mud Box Black RH
5437874070
$230,99 Unit Price incl. VAT
23
SUPPORT BOX BLACK
1016881067
1026148-067
$892,49 Unit Price incl. VAT
24
Screw
7519047
$7,34 Unit Price incl. VAT
25
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
