1
Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN 800 EFI 6X6 - A09CL76AA
4
Parts Catalog

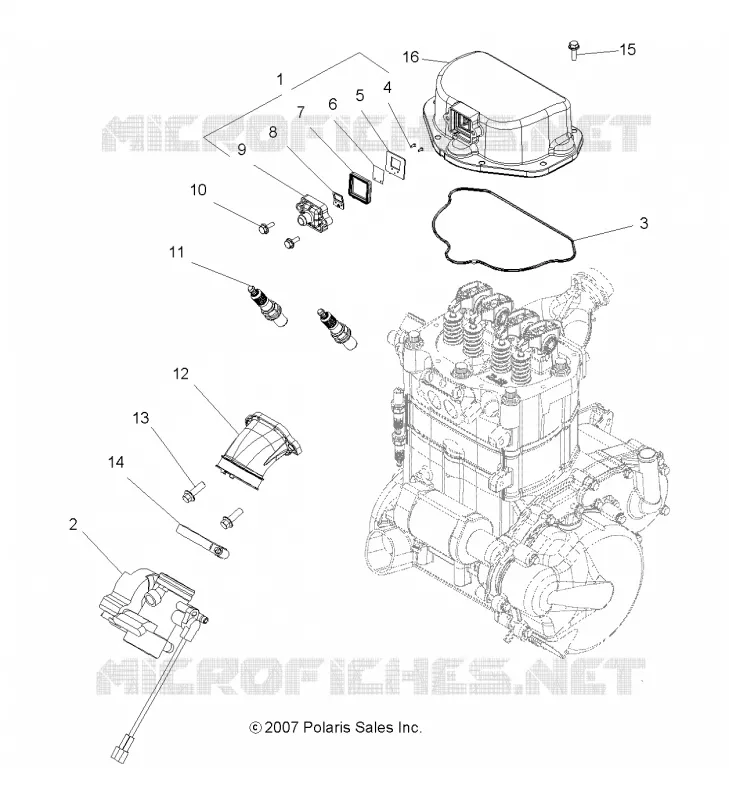

THROTTLE BODY MOUNTING
5
Parts Diagram
Parts Catalog
ENGINE, MOUNTING
by
VALVES
THROTTLE BODY MOUNTING
1
2
3
4
4
4
4
4
9
10
11
12
13
14
15
16
1
2
3
4
4
4
4
4
9
10
10
11
12
13
14
15
16
1
ASM-REED W/GASKET [INCL. RIVETS]
3021352
$62,99 Unit Price incl. VAT
2
Asm. Body Throttle [Incl. Throttle Position Sensor O-Ring]
1202836
Not Available
3
Seal Valve Cover
5412632
5412836
$13,64 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
Cover Breather
5432533
5438320
$16,79 Unit Price incl. VAT
10
SCR-M5X.80X20-HX/FL-Y/D
7516607
$19,94 Unit Price incl. VAT
11
PLUG SPARK CHAMPION RC7YC3
3021671
$7,34 Unit Price incl. VAT
12
Adapter
1253564
1240494
$115,49 Unit Price incl. VAT
13
BOLT-M8X1.25X25 HXFLG-OLIVE D
7518514
$3,14 Unit Price incl. VAT
14
Clamp Hose
7081193
7081623
$5,76 Unit Price incl. VAT
15
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
16
Cover Valve
5136099
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
