ENGINE MOUNTING TRAIL/0930761 AND TRAIL DELUXE/0930243 (4923222322029A) FOR TRAIL DELUXE - 0930243 FROM 1993

DRIVEN CLUTCH ASSEMBLY TRAIL DELUXE/0930243 (4923222322028A)

EXHAUST SYSTEM TRAIL/0930761 (4923222322030A)

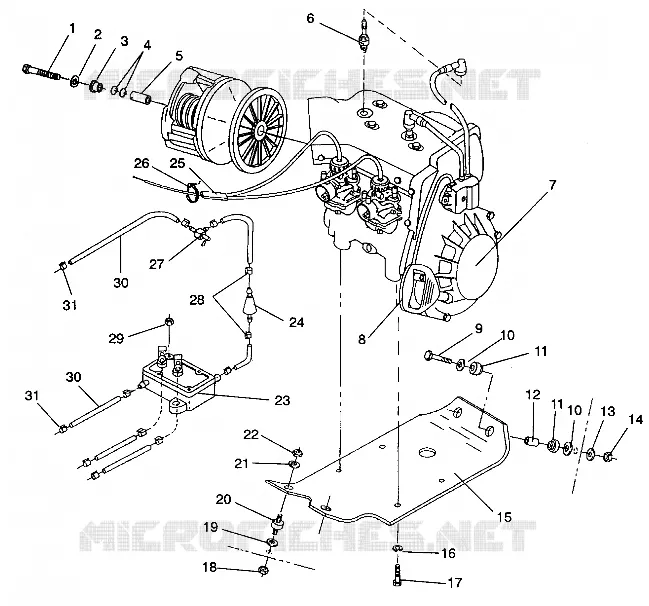

ENGINE MOUNTING TRAIL/0930761 AND TRAIL DELUXE/0930243 (4923222322029A)

1

BOLT(10)

7512565

$36,74 Unit Price incl. VAT

1

BOLT(10) *

7512566

$52,49 Unit Price incl. VAT

2

WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]

7575202

$9,44 Unit Price incl. VAT

3

WASHER-.440X1.25X.190 FL-Y

5210748

$7,34 Unit Price incl. VAT

4

O-RING CLUTCH BOLT

5410507

$2,09 Unit Price incl. VAT

5

BUSHING-.437 X.770 X.50

5430261

$13,64 Unit Price incl. VAT

6

SPARKPLUG (10)

3070156

$7,34 Unit Price incl. VAT

7

ENG EC44-3PM-01 [No Longer Available]

1211477

Not Available

7

ENG.EC50PM-01(TRAIL) [No Longer Available]

1211442

Not Available

8

HANDLE-RECOIL

5430520

Not Available

9

SCREW

7512530

$10,49 Unit Price incl. VAT

10

WASHER FLAT

7555740

$3,14 Unit Price incl. VAT

11

MOUNT ENGINE

5410390

Not Available

12

SPACER (MTR.MT.)

5332778

Not Available

13

WASHER(10)

7555817

Not Available

14

NUT LOCK (10)

7542503

$18,89 Unit Price incl. VAT

15

PLATE ENG.MT.

5222169

Not Available

16

WASHER LOCK(10)

7553101

$7,34 Unit Price incl. VAT

17

BOLT

7512539

$7,34 Unit Price incl. VAT

18

NUT FLEXLOC

7542411

$6,29 Unit Price incl. VAT

19

WASHER

7555721

$2,09 Unit Price incl. VAT

20

MOUNT

3110022

Not Available

21

WASHER(10) Substituted by 7555806

7555720

$1,56 Unit Price incl. VAT

22

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

23

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

24

FILTER FUEL (10)

2530008

$10,49 Unit Price incl. VAT

25

CABLE THROTTLE

7080289

$198,96 Unit Price incl. VAT

25

CABLE THROTTLE Substituted by 7080552

7080332

Not Available

26

CABLE-TIE DIA12-50MM WTHR-RES.

7080138

$5,24 Unit Price incl. VAT

27

VALVE FUEL SHUT-OFF

7052039

Not Available

27

VALVE FUEL SHUT-OFF

7052040

Not Available

28

CLAMP HOSE

7080490

Not Available

29

NUT NYLOK

7542122

$2,09 Unit Price incl. VAT

30

FUEL LINE 1/4"SAE #30R7

8450040

$136,49 Unit Price incl. VAT

31

HOSE CLAMP RED

7080003

$2,09 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
