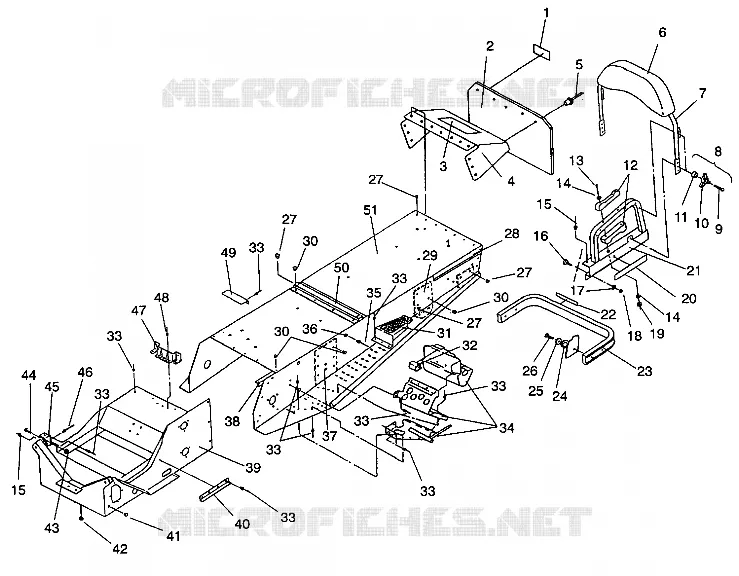

TUNNEL ASSEMBLY TRAIL DELUXE / 0930243 (4923222322001A) FOR TRAIL DELUXE

DECAL TRACK SEAT(BLK.) [No Longer Available]

7073038

Not Available

FLAP SNOW SILVER Substituted by 5410394-1106 (400)

5410394

5410394-1038

$194,24 Unit Price incl. VAT

DECAL CLOSEOFF #TRL.DELUXE# [No Longer Available]

7073581

Not Available

PANEL R.CLOSE-OFF ASM. (Incl. 41)

1011799

$52,80 Unit Price incl. VAT

POP RIVET(50)

7621418

$2,09 Unit Price incl. VAT

COVER B#REST(93TRLDLX)

2681630

$290,84 Unit Price incl. VAT

BACKREST ASM COOL/SLATE

2681629

Not Available

KNOB ASM BACKREST

2670130

Not Available

SCREW(10)

7515352

Not Available

KNOB BACKREST

5630386067

$47,24 Unit Price incl. VAT

SPACER

5431285

Not Available

GRIP HAND Substituted by 5433383

5431015

Not Available

SCREW-#10-24X1.5 TRX/PN MC-Y

7510504

$10,49 Unit Price incl. VAT

WASHER FLAT

7555783

$7,34 Unit Price incl. VAT

RIVET Substituted by 7661638

7661625

7661638

$2,09 Unit Price incl. VAT

BOLT(10) Substituted by 7512325

7515363

7512325

$4,19 Unit Price incl. VAT

WASHER [INTL]

7555843

7558302

$3,14 Unit Price incl. VAT

NUT NYLOK(10)

7542327

$9,44 Unit Price incl. VAT

NUT LOCK(10) Substituted by 7541925

7541929

7541925

$1,56 Unit Price incl. VAT

REFLECTOR RED

2670070

$15,95 Unit Price incl. VAT

BAR GRAB LH BLK.

1011729067

Not Available

BAR GRAB RH BLK.

1011730067

Not Available

DECAL.R.BUMPER [No Longer Available]

7073576

Not Available

BUMPER REAR Substituted by 2670122

5224420

Not Available

WASHER [INTL]

7558301

$2,09 Unit Price incl. VAT

WASHER SPRING LOCK

7552801

$3,14 Unit Price incl. VAT

BOLT(10)

7512240

$7,34 Unit Price incl. VAT

RIVET Substituted by 7661829

7661828

Not Available

DECAL LH.TUNNEL [No Longer Available]

7073577

Not Available

DECAL RH.TUNNEL(TRAIL) [No Longer Available]

7073578

Not Available

BRKT RH.REAR SUSP. (SKS)

1011906067

Not Available

BRKT LH.REAR SUSP (SKS)

1011905067

Not Available

RIVET SEMI-TUBE (50)

7661812

Not Available

PAD LH FOOT SAFETY

5830007

$10,70 Unit Price incl. VAT

PAD RH FOOT SAFETY

5830008

Not Available

FOOTREST RH REAR

5220894

$51,54 Unit Price incl. VAT

FOOTREST LH REAR

5220893

Not Available

EXTRUSION CLUTCH GUARD

5521238

$12,59 Unit Price incl. VAT

RIVET (MONOBOLT) Substituted by 7661637

7661620

7661637

$2,09 Unit Price incl. VAT

FOOTREST ASM LH

1011890

Not Available

FOOTREST ASM RH

1011891

Not Available

RIVET(50)

7621222

$1,04 Unit Price incl. VAT

SNAP-MALE(10)

7080227

Not Available

BRACKET SUSPENSION FRONT BLACK

5211323067

$47,24 Unit Price incl. VAT

BRACE TUNNEL REINF.

5222412

Not Available

BULKHEAD

1011874

Not Available

GUARD

5223789

Not Available

PLUG-HOLE

7080416

$12,59 Unit Price incl. VAT

PLUG-HOLE

7080398

$10,49 Unit Price incl. VAT

NUT FLANGE

7542321

$2,09 Unit Price incl. VAT

SCREW

7512307

$7,34 Unit Price incl. VAT

SUPPORT MUFFLER BLK. Substituted by 5242798-067

1011831067

Not Available

RIVET(50)

7621452

$2,09 Unit Price incl. VAT

BRACKET GAS TANK BLACK

1011733067

Not Available

RIVET(50)

7621301

Not Available

BRKT TOOL BOX

5220973

Not Available

BRKT R.FUEL TANK BLK.

5222375067

$27,92 Unit Price incl. VAT

TUNNEL ASM (93 DLX.) (Incl. 4 29 37 38 & 50 )

1011888

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
