Engine displacement
0
2
Year
1995
3
Trim
TRAIL BLAZER - W957221
4
Parts Catalog

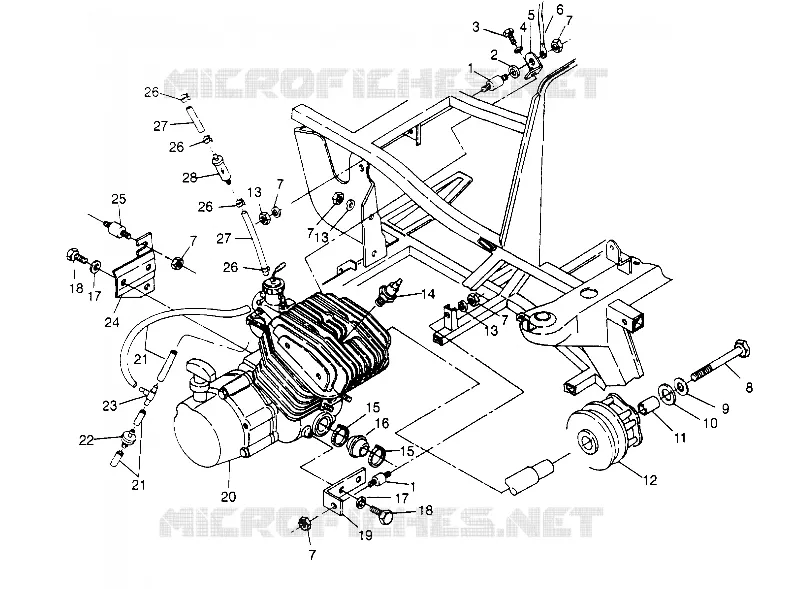

ENGINE MOUNTING TRAIL BLAZER W957221 (4930363036A009)
5
Parts Diagram
Parts Catalog
DECALS TRAIL BLAZER W957221 (4930363036A008)
by
EXHAUST ASSEMBLY TRAIL BLAZER W957221 (4930363036A010)
ENGINE MOUNTING TRAIL BLAZER W957221 (4930363036A009)
1
1
2
3
4
5
6
7
7
7
7
7
7
8
9
10
11
12
13
13
13
14
15
15
16
17
17
18
18
19
20
21
21
22
23
24
25
26
26
26
26
27
27
28
1
MOUNT MOTOR
3110026
$73,49 Unit Price incl. VAT
2
INSULATOR MOTOR MT.
5430802
$52,49 Unit Price incl. VAT
3
BOLT(10)
7515321
Not Available
4
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
5
MOUNT ENG. TOP
5220471067
Not Available
6
CABLE GROUND/ENG.
4010067
Not Available
7
Nut
7542403
Not Available
8
BOLT(10) *
7512566
$52,49 Unit Price incl. VAT
9
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
10
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
11
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
WASHER(10)
7555801
$7,34 Unit Price incl. VAT
14
SPARKPLUG (10)
3070156
$7,34 Unit Price incl. VAT
15
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
16
BOOT CLUTCH INTAKE
5410421
$20,99 Unit Price incl. VAT
17
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
7552603
$1,56 Unit Price incl. VAT
18
SCREW
7512490
$7,34 Unit Price incl. VAT
19
PLATE FR.MTR.MT.
5220881067
Not Available
20
ENG.(S.B.)EC25PF-SB [No Longer Available]
3084717
Not Available
21
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
22
CHECKVALVE VENT Substituted by 7051011
7052047
Not Available
23
FITTING TEE
7052005
Not Available
24
MT R.A/C(ATV) BLK.
5241056067
Not Available
25
MOUNT MOTOR
3110028
Not Available
26
CLAMP
7080236
$3,14 Unit Price incl. VAT
27
FUEL LINE 3/16 ID(600 CM.)
8450042600
Not Available
28
FILTER
2530009
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
