1
Engine displacement
0
2
Year
1995
3
Trim
TRAIL BLAZER - W957221
4
Parts Catalog
FRONT WISHBONES STEERING TIE RODS TRAIL BLAZER W957221 (4930363036B007)
5
Parts Diagram
Parts Catalog
STEERING POST ASSEMBLY TRAIL BLAZER W957221 (4930363036B006)
by
CONTROLS

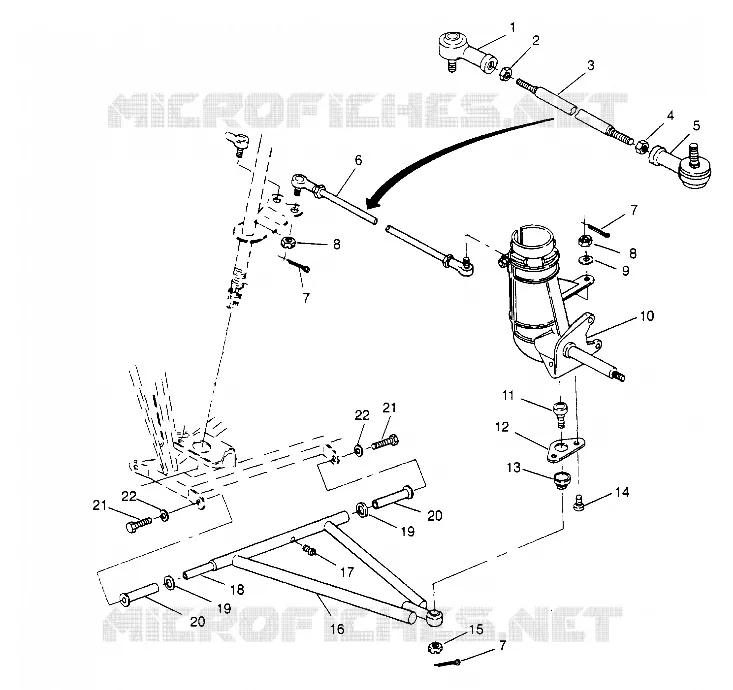

FRONT WISHBONES STEERING TIE RODS TRAIL BLAZER W957221 (4930363036B007)
1
2
3
4
5
6
7
7
7
8
8
9
10
10
10
10
11
12
13
14
15
16
16
16
16
17
18
19
19
20
20
21
21
22
22
1
ROD END RH 10 MM.
7060172
$115,49 Unit Price incl. VAT
2
NUT RH 10 MM.(10)
7546901
$4,19 Unit Price incl. VAT
3
TIE ROD
5020478
$99,74 Unit Price incl. VAT
4
NUT LH 10 MM.(10)
7546902
Not Available
5
ROD END LH W/FTG 10 MM.
7060171
$115,49 Unit Price incl. VAT
6
TIEROD ASM RELUBE
1822307
Not Available
7
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
8
NUT CASTLE(10)
7546904
$9,44 Unit Price incl. VAT
9
WASHER
7555806
$1,56 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
BALL JOINT Substituted by 7080673 (Incl. 32-34)
7080364
7061306
$52,49 Unit Price incl. VAT
12
BRACKET-BALL JOINT
5211121
$62,99 Unit Price incl. VAT
13
BOOT RUBBER
5410548
5412658
$9,44 Unit Price incl. VAT
14
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
$2,09 Unit Price incl. VAT
15
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
16
KIT A-FRAME LH
2200477
Not Available
16
KIT A-FRAME RH (Incl. 7 16 17 19-22)
2200478
Not Available
17
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
18
SHAFT A-ARM (2X4)
5020680
Not Available
19
BUSHING A-ARM SPACER(10)
5020677
$19,94 Unit Price incl. VAT
20
BUSHING A-ARM LONG. Substituted by 5433066
5431596
5436973
$9,44 Unit Price incl. VAT
21
BOLT(10) Substituted by 7512492
7515458
7512492
$2,09 Unit Price incl. VAT
22
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
