1
Engine displacement
1000
2
Year
2020
3
Trim
SPORTSMAN 1000 XP 48" TRAIL PACKAGE
4
Parts Catalog
REAR SUSPENSION CONTROL ARMS- A20SXZ95AG (C0211319)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION A-ARMS
by
FRONT SHOCK

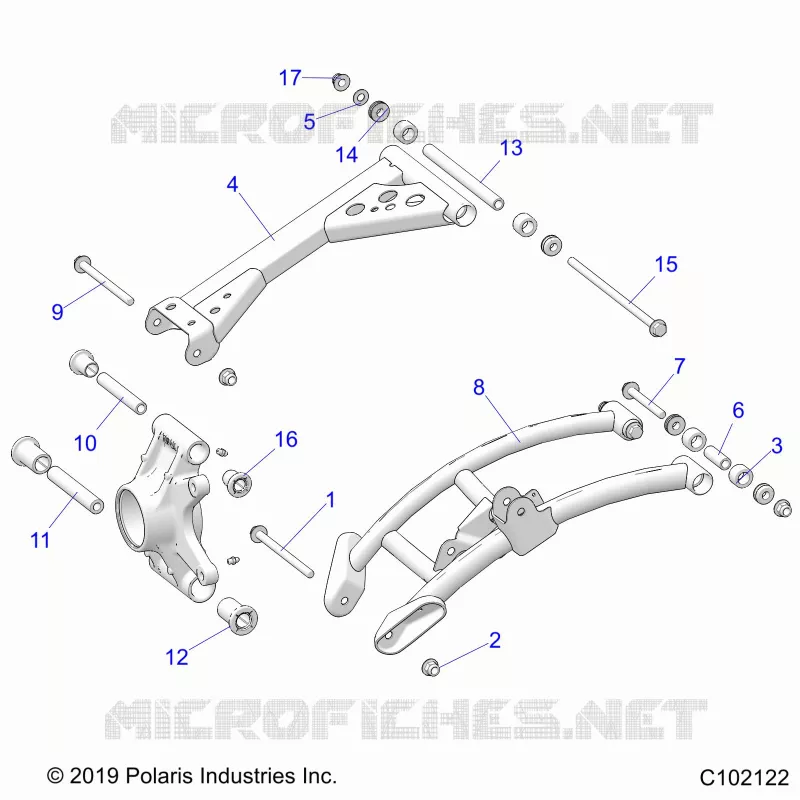

REAR SUSPENSION CONTROL ARMS- A20SXZ95AG (C0211319)
10
11
12
13
14
15
16
17
1
SCR-HXFL-M10X1.5X140 8.8 ZY3
7518467
$10,49 Unit Price incl. VAT
2
NUT-M10X1.5 HXFLG NYLON INS
7547313
$2,09 Unit Price incl. VAT
3
BUSHING-STANDARD SUSP M10
5452233
$5,24 Unit Price incl. VAT
4
WELD-UCA SEAL REAR RH BLK
1025343067
$125,99 Unit Price incl. VAT
4
WELD-UCA SEAL REAR LH BLK
1025342067
$125,99 Unit Price incl. VAT
4
WELD-UCA SEAL REAR RH BLK [TO 9/16/2019]
1023471067
1025343-067
$125,99 Unit Price incl. VAT
4
WELD-UCA SEAL REAR LH BLK [TO 9/16/2019]
1023470067
1025342-067
$125,99 Unit Price incl. VAT
5
WASHER
7556153
$3,66 Unit Price incl. VAT
6
SHAFT-PIVOT SHORT M10 43MM
5141292
$8,39 Unit Price incl. VAT
7
SCR-HXFL-M10X1.5X85 8.8 ZY3
7518466
$9,44 Unit Price incl. VAT
8
WELD-LCA SEAL REAR LH BLK
1023459067
$257,24 Unit Price incl. VAT
8
WELD-LCA SEAL REAR RH BLK
1023460067
$314,99 Unit Price incl. VAT
9
BOLT FLANGE
7518675
$10,49 Unit Price incl. VAT
10
SHAFT PIVOT
5137590
$16,79 Unit Price incl. VAT
11
SHAFT A-ARM LOWER CONTROL ARM [TO 8/2/2023]
5136473
5145086
$68,24 Unit Price incl. VAT
12
BUSHING LOWER CONTROL ARM
5437651
$12,59 Unit Price incl. VAT
13
SHAFT-PIVOT 190MM M10
5141510
$52,49 Unit Price incl. VAT
14
ASM-PIVOT CAP SEALED M10
1543611
$10,49 Unit Price incl. VAT
15
SCR-HXFL-M10X1.25X235 10.9 ZOD
7519086
$52,49 Unit Price incl. VAT
16
BUSHING-STANDARD ORV
5439874
$4,19 Unit Price incl. VAT
17
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
