1
Engine displacement
1000
2
Year
2020
3
Trim
SPORTSMAN 1000 XP 48" TRAIL PACKAGE
4
Parts Catalog
CYLINDER HEAD, CAM AND VALVES
5
Parts Diagram
Parts Catalog
CRANKCASE
by
ENGINE, VALVE COVER

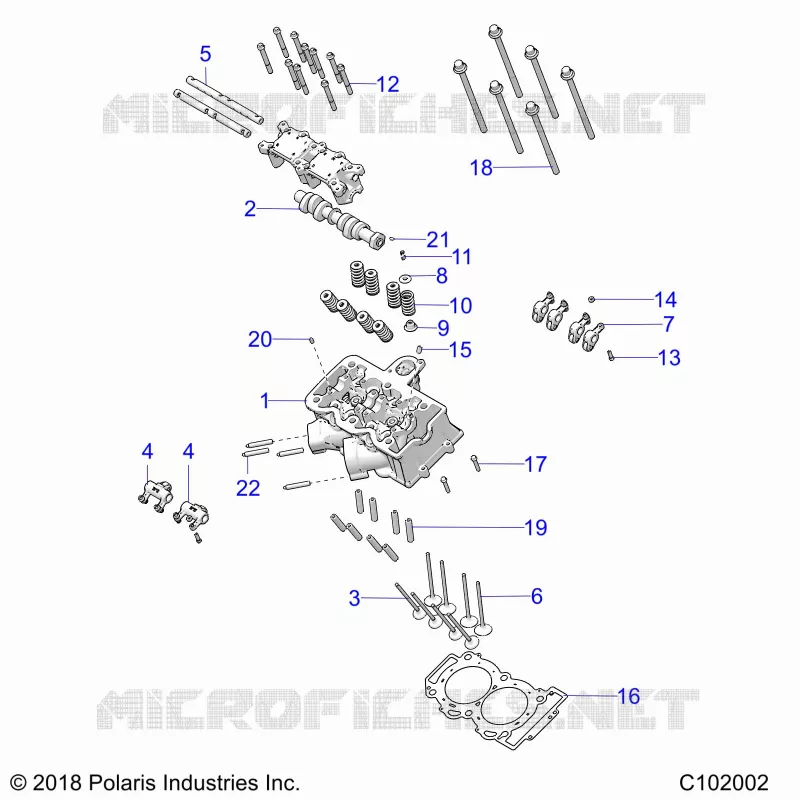

CYLINDER HEAD, CAM AND VALVES
1
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
ASM. CYLINDER HEAD [INCL. CAMSHAFT CARRIER PLUG]
3022549
3024638
$1 730,39 Unit Price incl. VAT
1
PLUG
7052532
$52,49 Unit Price incl. VAT
2
ASM. CAM SHAFT [INCL. 21][TO 9/1/2022]
3022643
3024064
$734,99 Unit Price incl. VAT
3
VALVE-EXHAUST 28MM SUH35
3022589
$62,99 Unit Price incl. VAT
4
ASM. ARM ROCKER EXHAUST [INCL. ARM SCREW NUT]
1205374
$257,24 Unit Price incl. VAT
5
ASM-ROCKER SHAFT
3022728
3024201
$125,99 Unit Price incl. VAT
5
ASM-ROCKER SHAFT [FROM 3/1/2020]
3023036
3024201
$125,99 Unit Price incl. VAT
6
VALVE-INTAKE 33MM
3022203
$62,99 Unit Price incl. VAT
7
ASM. ARM ROCKER INTAKE [INCL. ARM SCREW NUT]
1205375
3024036
$178,49 Unit Price incl. VAT
8
RETAINER VALVE
3021865
$9,44 Unit Price incl. VAT
9
Seal Valve
3610165
3024534
$14,69 Unit Price incl. VAT
10
SPRING VALVE
7043947
7045875
$52,49 Unit Price incl. VAT
11
KEEPER-VALVE
7081470
$9,44 Unit Price incl. VAT
12
SCREW
7519293
$13,64 Unit Price incl. VAT
13
SCREW LASH ADJUSTER SWIVEL
5142377
$15,74 Unit Price incl. VAT
14
NUT LOCK
7547933
$6,29 Unit Price incl. VAT
15
JET-OIL OIL PUMP
2540080
$17,84 Unit Price incl. VAT
16
GASKET-CYLINDER HEAD 1000XP
5813933
$110,24 Unit Price incl. VAT
17
SCR-HXFL-M6X1.0X35 8.8 ZY3
7518578
$7,34 Unit Price incl. VAT
18
Bolt Head
7519219
$18,89 Unit Price incl. VAT
19
GUIDE VALVE
3022348
$16,79 Unit Price incl. VAT
20
PIN-DOWEL M6X10
5137624
$13,64 Unit Price incl. VAT
21
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
22
STUD EXHAUST MOUNT [FROM 11/4/2019]
5132040
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
