1
Engine displacement
1000
2
Year
2022
3
Trim
SPORTSMAN TOURING XP 1000 48"
4
Parts Catalog
ENGINE, AIR INTAKE
5
Parts Diagram
Parts Catalog
ELECTRICAL, VOLTAGE REGULATOR AND MOUNTING
by
BALANCE SHAFT

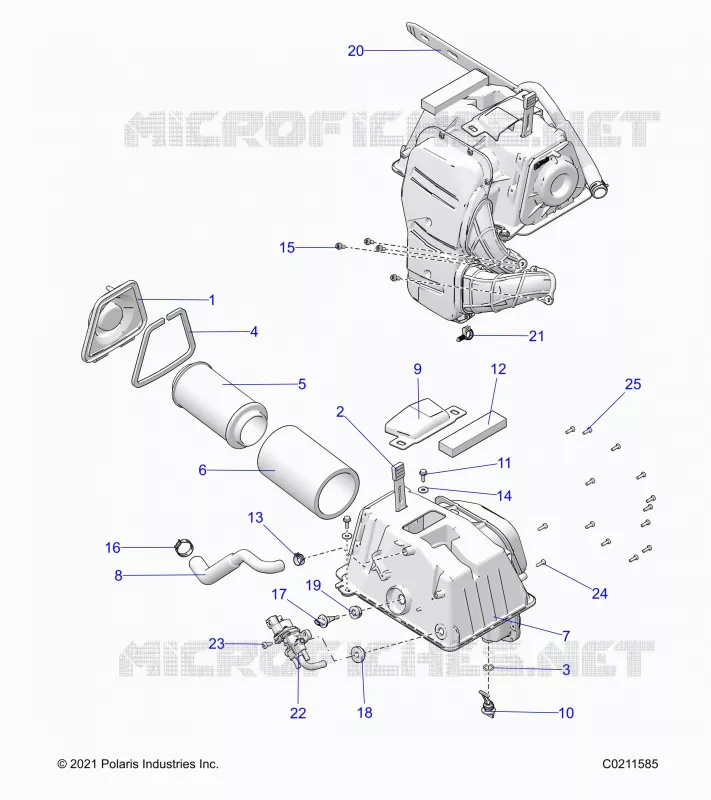

ENGINE, AIR INTAKE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
COVER AIRBOX
5438983
$83,99 Unit Price incl. VAT
2
STRAP-AIRBOX TOP
5433150
$47,24 Unit Price incl. VAT
3
O-RING
5414246
$3,14 Unit Price incl. VAT
4
SEAL AIRBOX COVER
5813359
$12,59 Unit Price incl. VAT
5
FILTER AIR INTAKE
7082101
7083107
$51,23 Unit Price incl. VAT
6
Filter Pre-Cleaner Sleeve
5811633
$19,20 Unit Price incl. VAT
7
ASM. AIR INTAKE BOX W/RUNNERS
1240825
2213033
$330,74 Unit Price incl. VAT
8
HOSE BREATHER TWIN
5414322
$83,99 Unit Price incl. VAT
9
HOOD AIR INTAKE
5414252
$83,99 Unit Price incl. VAT
10
PLUG AIR BOX
5451429
$29,39 Unit Price incl. VAT
11
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
12
FOAM-CAB SGUARD 254X38.1X19.05
5813409
$12,59 Unit Price incl. VAT
13
CLAMP-HOSE SPRING .81
7081026
$14,69 Unit Price incl. VAT
14
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
15
SCREW-SOCFLGHD M6X1.0X16
7518803
$7,34 Unit Price incl. VAT
16
SPRINGBAND-CLAMP 29/12 BLK
7080842
$13,64 Unit Price incl. VAT
17
Sensor Air Temperature
2410687
$283,49 Unit Price incl. VAT
18
GROMMET SUPPORT TRUNK
5413423
$6,29 Unit Price incl. VAT
19
GROMMET AIR TEMPERATURE SENSOR
5436346
$9,44 Unit Price incl. VAT
20
STRAP ECU
5414193
$52,49 Unit Price incl. VAT
21
Clip Plastic Dart Nylon
4010589
$3,77 Unit Price incl. VAT
22
VALVE IAC
4013313
$346,49 Unit Price incl. VAT
23
SCR-TX TRUSS-#14X3/4 HI/LO ZBK
7519045
$6,29 Unit Price incl. VAT
24
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
25
SCREW-10X5/8-HI/LO PN-T25 TRX-M
7518238
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
