1
Engine displacement
1000
2
Year
2022
3
Trim
SPORTSMAN TOURING XP 1000 48"
4
Parts Catalog
ELECTRICAL, HARNESS
5

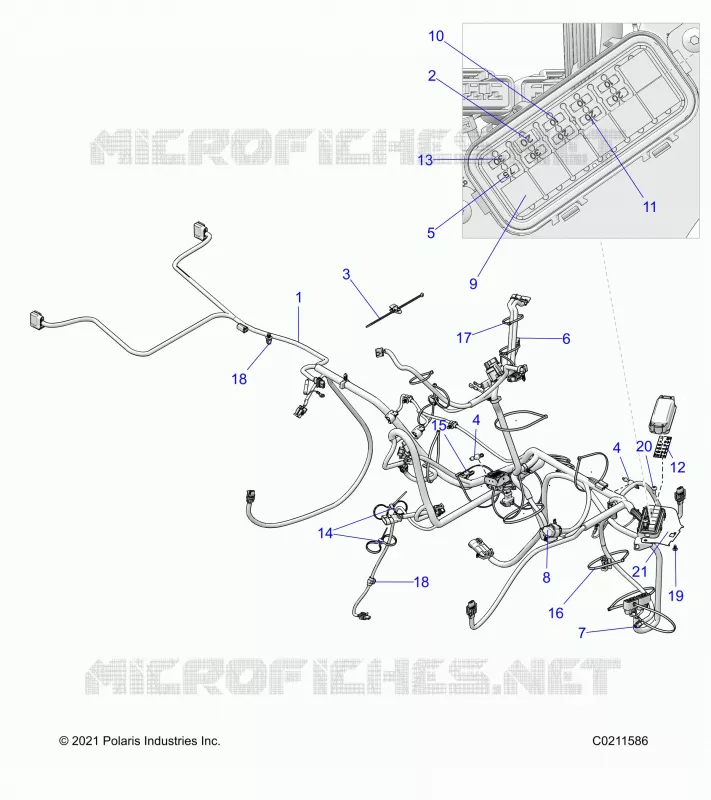

Parts Diagram
Parts Catalog
ELECTRICAL, GAUGES AND INDICATORS
by
ELECTRICAL, HEADLIGHTS
ELECTRICAL, HARNESS
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
1
HARNESS-MAIN 850/1000 EPS TRG [INCL. 1-14]
2415158
$1 753,49 Unit Price incl. VAT
2
BREAKER-CIRCUIT 20 AMP
4011372
$83,99 Unit Price incl. VAT
3
CLIP-EDGE DIA5-50MM OUT-SER
7081824
$26,24 Unit Price incl. VAT
4
DIODE - 6 AMP 1/4 3/16 TERM
2411035
$104,99 Unit Price incl. VAT
5
FUSE - 7.5 MINI BLADE (BROWN)
4011068
$23,09 Unit Price incl. VAT
6
CONNECTOR-CAP WINCH SWITCH
4014890
$18,89 Unit Price incl. VAT
7
CONNECTOR-CAP WINCH CONTACTOR
4014891
$16,79 Unit Price incl. VAT
8
COVER - DIAGNOSTIC W/ CLIP
4012170
$16,79 Unit Price incl. VAT
9
RELAY - SPST 12V 20A EPXY HFA
4016819
$68,24 Unit Price incl. VAT
10
FUSE-IGNITION 10 AMP
2434016
$10,49 Unit Price incl. VAT
11
FUSE-PARK 20 AMP
2434017
4012811
$15,74 Unit Price incl. VAT
12
LABEL FUSE BOX
7192266
Not Available
13
FUSE-MAIN 30 AMP
2434015
$15,74 Unit Price incl. VAT
14
STRAP-PANDUIT DBL LOOP 260MM
7081916
$9,44 Unit Price incl. VAT
15
Clip Plastic Dart Nylon
4010589
$3,77 Unit Price incl. VAT
16
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
17
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
18
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
19
FASTNER-PUSH-ON CLIP .250
7670125
$11,54 Unit Price incl. VAT
20
SCREW-M6X1X14 PN/TX TRI-LOB
7518914
$6,29 Unit Price incl. VAT
21
BRACKET FUSE BLOCK
5257893
$19,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
