1
Engine displacement
570
2
Year
2016
3
Trim
RANGER XP 570 FULL SIZE CREW
4
Parts Catalog
DASH CONTROLS
5
Parts Diagram
Parts Catalog
BATTERY
by
SENSORS

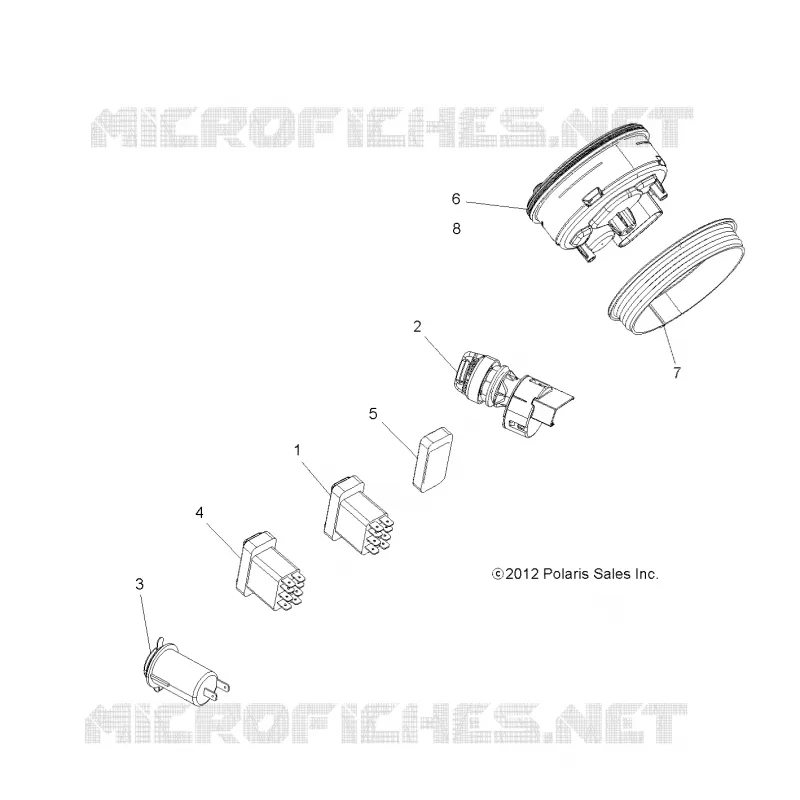

DASH CONTROLS
1
2
3
4
5
6
7
8
1
SWITCH HEADLIGHT
4011115
$173,24 Unit Price incl. VAT
2
SWITCH KEY 3 POSITION [INCL. 23-25]
4012165
4083589
$202,64 Unit Price incl. VAT
3
RECEPTACLE POD MOUNT 12 VOLT
4015439
4012393
$68,24 Unit Price incl. VAT
4
SWITCH-AWD
4012747
$104,99 Unit Price incl. VAT
5
PLUG-HOLE CARLING ROCKER SWTCH
5434192
$13,64 Unit Price incl. VAT
6
ASM. CLUSTER [INCL. RUBBER MOUNT]
3280632
$503,99 Unit Price incl. VAT
7
MOUNT-RUBBER INSTR. CLUSTER
5412138
$83,99 Unit Price incl. VAT
8
BEZEL-INSTRUMENT CLUSTER BLK
5438945
$29,39 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
