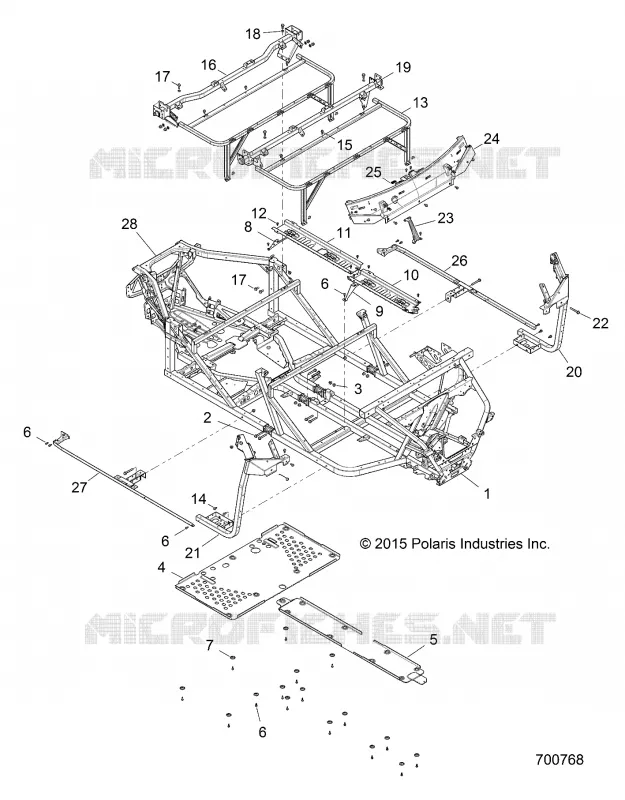

Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
DRIVE TRAIN, GEAR SELECTOR
CHASSIS, FRAME
1
2
3
4
5
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
1
2
3
4
5
6
1
FRAME MAIN FRONT MATTE BLACK
1020582458
$3 270,74 Unit Price incl. VAT
2
BOLT-M10X1.25X70 HXFLG-OLIVE D
7518561
$13,64 Unit Price incl. VAT
3
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
4
PLATE SKID REAR BLACK
5450336070
$152,24 Unit Price incl. VAT
5
PLATE SKID FRONT BLACK
5450337070
$209,99 Unit Price incl. VAT
6
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
7
WASHER-SKID PLATE
7556065
$8,39 Unit Price incl. VAT
8
BRACKET ROUTING TRAY BLACK
5257333329
$83,99 Unit Price incl. VAT
9
BRACKET ROUTING TRAY CENTER BLACK
5257387329
$83,99 Unit Price incl. VAT
10
TRAY ROUTING BLACK
5450841070
$115,49 Unit Price incl. VAT
11
TRAY ROUTING REAR BLACK
5450845070
$125,99 Unit Price incl. VAT
12
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
13
BASE CAB/SEAT BLACK
1019513329
$608,99 Unit Price incl. VAT
14
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
15
SCR-HXFL M8X1.25X25 ZOD TAP/R
7519156
$3,14 Unit Price incl. VAT
16
SUPPORT CAB REAR MATTE BLACK
1020588329
$608,99 Unit Price incl. VAT
17
SCR-HXFL-M10X1.25X30 8.8 ZOD
7519059
$5,76 Unit Price incl. VAT
18
WASHER
7556153
$3,66 Unit Price incl. VAT
19
SUPPORT CAB BLACK [6 OCCUPANTS]
1020586329
$608,99 Unit Price incl. VAT
20
SUPPORT FLOOR LH MATTE BLACK
1020577458
$456,74 Unit Price incl. VAT
21
SUPPORT FLOOR RH MATTE BLACK
1020578458
$456,74 Unit Price incl. VAT
22
SCR-HXFL-M10X1.25X80 8.8 ZOD
7519363
7528444
$4,19 Unit Price incl. VAT
23
BRACKET PLATE CENTER PIN MOUNT
5260353
$78,74 Unit Price incl. VAT
24
PLATE WINDSHIELD MOUNT LOWER BLACK
5450344070
$283,49 Unit Price incl. VAT
25
CLIP-U SPEED NUT
7081305
$3,66 Unit Price incl. VAT
26
ROCKER LH BLACK
1019498329
$472,49 Unit Price incl. VAT
27
ROCKER RH BLACK
1019500329
$472,49 Unit Price incl. VAT
28
FRAME REAR MATTE BLACK
1020584458
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
