1
Engine displacement
900
2
Year
2016
3
Trim
RANGER XP 900 EU
4
Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
REFERENCES, TOOL KIT AND OWNERS MANUALS
by

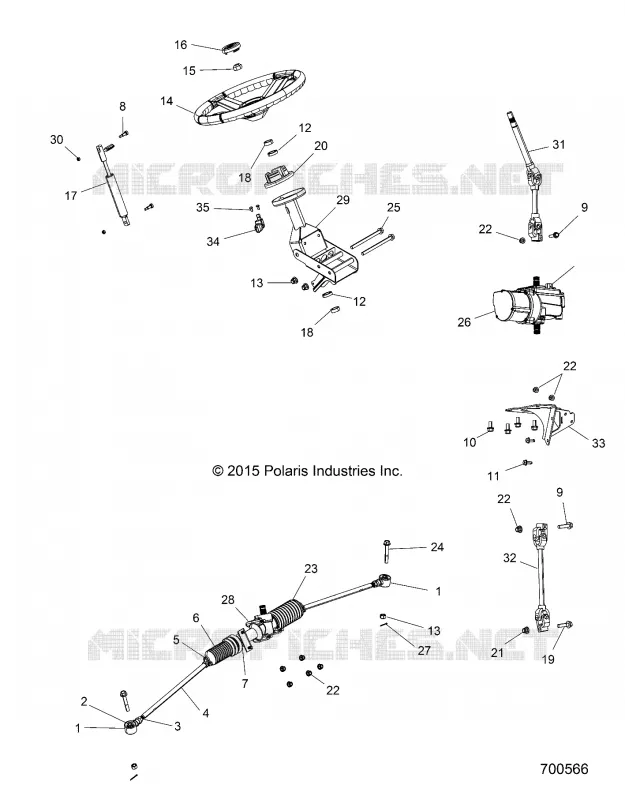

STEERING
1
1
2
3
4
5
6
7
8
9
9
10
11
12
12
13
13
14
15
16
17
18
18
19
20
21
22
22
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
BOOT SEAL ROD END
5411920
5412929
$20,99 Unit Price incl. VAT
2
ROD END [INCL. 1]
7061054
7061138
$104,99 Unit Price incl. VAT
3
NUT-1/2-20 LH JAM
7547028
$4,19 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
BELLOWS CLAMP SMALL
7080978
$4,19 Unit Price incl. VAT
6
BOOT PASSENGER SIDE RACK
5412013
$104,99 Unit Price incl. VAT
7
CLAMP LARGE BELLOWS
7080979
$10,49 Unit Price incl. VAT
8
SCR-SH-M6X1.0X11 12.9 ZB SHB
7519980
$13,64 Unit Price incl. VAT
9
SCR-HXFL-M8X1.25X35 8.8 ZOD
7519052
$3,14 Unit Price incl. VAT
10
BOLT-M10X1.25X20 HXFLG-OLV D
7518558
$7,34 Unit Price incl. VAT
11
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
12
BEARING-STEERING
3514686
$16,79 Unit Price incl. VAT
13
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
14
WHEEL-STEERING 14#
1823623
$246,74 Unit Price incl. VAT
15
NUT-HEX-M16X2 8 ZC NYL
7547506
$7,34 Unit Price incl. VAT
16
CAP-STEERING WHEEL
5436536
$62,99 Unit Price incl. VAT
17
ASM-SHOCK OIL LOCKING MACH
7044098
$178,49 Unit Price incl. VAT
18
BUSHING-STEERING
7556675
$24,14 Unit Price incl. VAT
19
SCR-M10X1.50X35 HX/FL
7518644
$9,44 Unit Price incl. VAT
20
COLLAR STEERING LOCK MATTE BLK [FR][JR]
5632295458
Not Available
21
NUT-NY INS M10X1.5 HEX ZINC YW
7547385
$2,09 Unit Price incl. VAT
22
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
23
BOOT DRIVERS SIDE RACK
5412012
$115,49 Unit Price incl. VAT
24
SCR-HXFL-M10X1.25X65 10.9 ZY3
7517909
$10,49 Unit Price incl. VAT
25
BOLT-M10X1.25X130 HXFLG-OLIVED
7518665
$25,19 Unit Price incl. VAT
26
ASM. POWER STEERING [EPS MODELS][E87AG/BG]
2413397
$3 433,49 Unit Price incl. VAT
27
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
28
ASM. GEAR BOX STEERING [INCL. 1-7 23]
1823902
$1 018,49 Unit Price incl. VAT
29
ASM-TILT STEER RVTD M10 EU BLK
1824449458
Not Available
30
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
31
SHAFT STEERING UPPER
1823891
$272,99 Unit Price incl. VAT
32
SHAFT STEERING LOWER W/JOINT EPAS
1823667
$241,49 Unit Price incl. VAT
33
WELD-EPAS MNT BLK
1021526329
$89,24 Unit Price incl. VAT
34
STEERING LOCK
7082045
$83,99 Unit Price incl. VAT
35
SCR-M5X.8X10 TX BTN PIN-IN HD
7518457
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
