1
Engine displacement
850
2
Year
2020
3
Trim
800 RMK KHAOS 155 / 155 3"
4
Parts Catalog

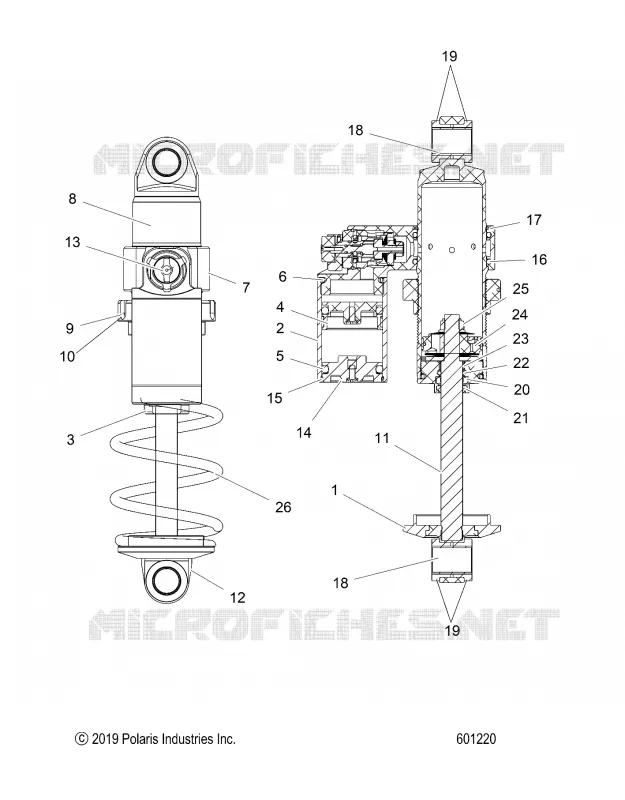

SUSPENSION, FRONT SHOCK TRACK
5
Parts Diagram
Parts Catalog
STEERING, HANDLEBAR MOUNTING
by
SUSPENSION, REAR TORQUE ARM
SUSPENSION, FRONT SHOCK TRACK
-
24
25
26
-
SHOCK FT WALKER EVANS VELOCITY [INCL. 1-25]
7045233
$1 322,99 Unit Price incl. VAT
1
RETAINER-CLIP SPRING BLK
1800925
$57,74 Unit Price incl. VAT
2
BODY-RESERVOIR 2#
1801070
$188,99 Unit Price incl. VAT
3
ASM. SEAL HEAD .625 SHAFT [INCL. NEEDLE VALVE 2 4 5]
1800569
$314,99 Unit Price incl. VAT
4
PISTON IFP
1800739
$68,24 Unit Price incl. VAT
5
O-RING
1800184
$10,49 Unit Price incl. VAT
6
O-RING BODY LOOP
1800030
$3,66 Unit Price incl. VAT
7
BRIDGE-2# HI-LO
1801071
$493,49 Unit Price incl. VAT
8
BODY-2# MIDMNT
1801072
$367,49 Unit Price incl. VAT
9
SPRING NUT- 2.0
1800936
$94,49 Unit Price incl. VAT
10
SCREW-M4
1801002
$7,34 Unit Price incl. VAT
11
SHAFT- .625DIA.
1801073
$230,99 Unit Price incl. VAT
12
SHAFT LOOP .625THD
1801074
$125,99 Unit Price incl. VAT
13
ADJUSTER-HS-LS W/KNOB [ADJUSTER ASM.]
1801059
$661,49 Unit Price incl. VAT
14
ASM-END CAP 2.0
1801006
$178,49 Unit Price incl. VAT
15
RETAINING RING WIRE 0.0625 X 1.750ID
1800795
$15,74 Unit Price incl. VAT
16
O-RING 2-226 1600018
1800863
$9,44 Unit Price incl. VAT
17
RETAINING RING 2.0 EXT
1801075
$47,24 Unit Price incl. VAT
18
SLEEVE
1800405
$62,99 Unit Price incl. VAT
19
BUSHING
1800406
$9,44 Unit Price incl. VAT
20
SEAL U-CUP
1800323
$52,49 Unit Price incl. VAT
21
WIPER D-TYPE
1800322
$62,99 Unit Price incl. VAT
22
O-RING SHAFT SEAL HEAD
1800037
$3,14 Unit Price incl. VAT
23
SHAFT BUSHING .625X.25L
1801076
$20,99 Unit Price incl. VAT
24
ASM-PISTON
1801077
$194,24 Unit Price incl. VAT
25
NUT-FLEX-TOP LOCK 7/16
1801000
$11,54 Unit Price incl. VAT
26
SPRING-COMP 75/150#X6.7 2# BLK
7045232458
$225,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
