1
Engine displacement
850
2
Year
2020
3
Trim
800 RMK KHAOS 155 / 155 3"
4
Parts Catalog
ENGINE, MOUNTING
5

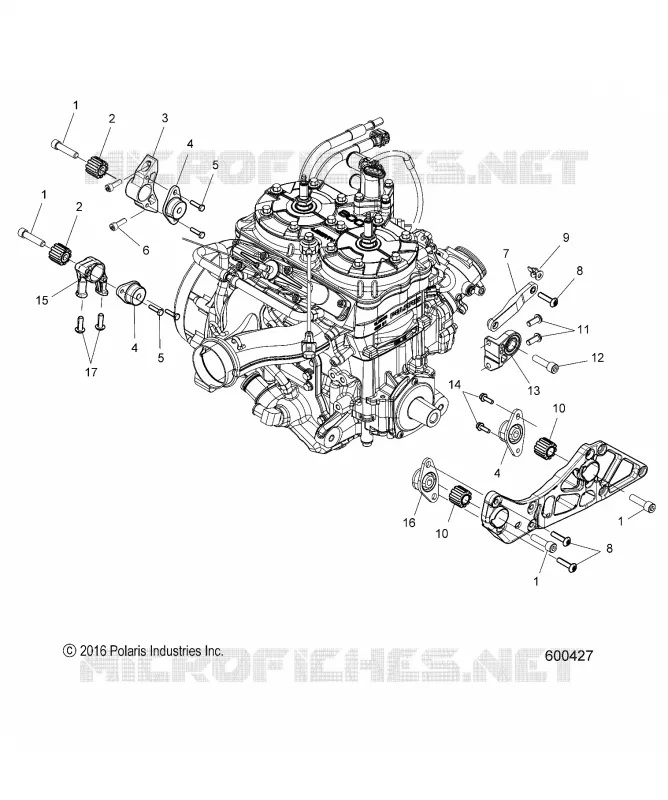

Parts Diagram
Parts Catalog
CHASSIS, BULKHEAD ASM.
by
HOOD ASM.
ENGINE, MOUNTING
-
12
13
14
15
16
17
-
ENGINE LONG BLOCK 800
2208213
$9 922,49 Unit Price incl. VAT
1
SCR-SH-M10X1.5X50 12.9 ZFK L
7519334
$9,44 Unit Price incl. VAT
2
MOUNT ENGINE INSERT RAD MAG
3023291
$52,49 Unit Price incl. VAT
3
MOUNT ENGINE REAR MAG
5138294
$89,24 Unit Price incl. VAT
4
MOUNT ENGINE
3023293
$73,49 Unit Price incl. VAT
5
SCR-M6X1.0X25-HX/FL-Y/D
7516823
$5,76 Unit Price incl. VAT
6
SCR-M8X1.25X25 8.8 SH ZOD P30
7519010
$7,34 Unit Price incl. VAT
7
ASM. LINK TORQUE FIXED OFFSET
1019944
$157,49 Unit Price incl. VAT
8
SCR-TXTH M8X1.25X35 8.8ZOD P80
7519049
$13,64 Unit Price incl. VAT
9
BRKT. WASHER 14GA.
5258166
$18,89 Unit Price incl. VAT
10
MOUNT ENGINE INSERT RAD PTO
3023290
$52,49 Unit Price incl. VAT
11
SCR-TXBH-M8X1.25X20 TX W/PATCH
7519648
$7,34 Unit Price incl. VAT
12
SCR-SH-M10X1.5X25 ZOD
7519119
$6,29 Unit Price incl. VAT
13
LIMITER TORQUE ENGINE
3022281
$89,24 Unit Price incl. VAT
14
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
15
MOUNT ENGINE FRONT BASE
5139042
$83,99 Unit Price incl. VAT
16
MOUNT ENGINE PTO FRONT
3023292
$83,99 Unit Price incl. VAT
17
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$11,54 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
