1
Engine displacement
850
2
Year
2019
3
Trim
SCRAMBLER 850 48"
4
Parts Catalog

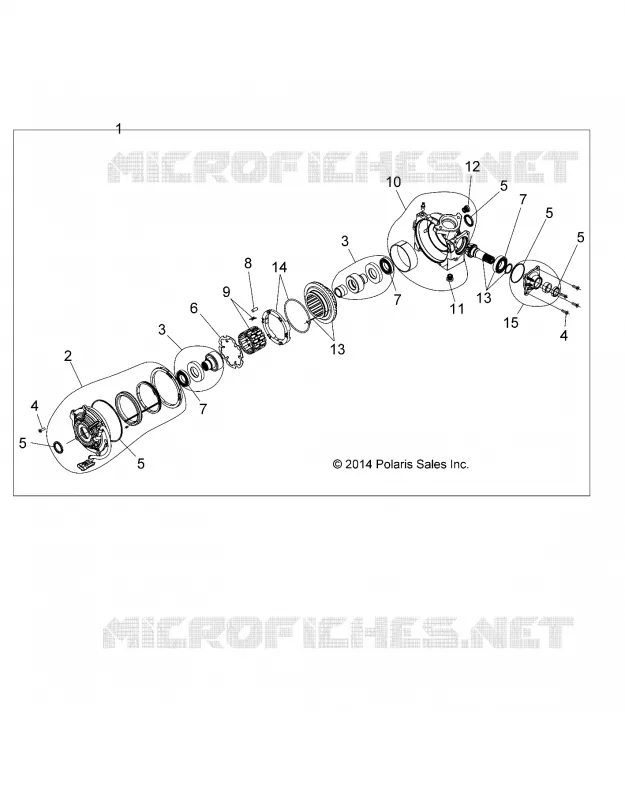

DRIVE TRAIN, FRONT GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
DRIVE TRAIN, GEAR SELECTOR
DRIVE TRAIN, FRONT GEARCASE INTERNALS
1
ASM. GEARCASE FRONT [INCL. ALL]
1333569
$3 008,24 Unit Price incl. VAT
2
ASSY COVR OUTLET [INCL. O-RING 4WD COIL SPACER CLIP INSERT COVER PIN SEAL WIRING]
3235634
3236667
$955,49 Unit Price incl. VAT
3
KIT HUB ASSEMBLY [INCL. BEARINGS BUSHING HUBS SPACERS]
3235911
3236675
$782,24 Unit Price incl. VAT
4
COVER FASTENERS [INCL. QTY 10 SCREWS]
3235433
$68,24 Unit Price incl. VAT
5
COMPLETE SEAL REPAIR [INCL. ALL O-RINGS ALL SEALS]
3235434
3236671
$136,49 Unit Price incl. VAT
6
PLATE 4WD ARMATURE
3235485
3236048
$209,99 Unit Price incl. VAT
7
KIT BEARINGS [INCL. ALL BALL BEARINGS]
3235435
$202,64 Unit Price incl. VAT
8
K-CLUTCH ROLLS W/COMPLETE SET OF ROLLER
3235624
$12,59 Unit Price incl. VAT
9
ASM-ROLL CAGE [INCL. CAGE AND COMPLETE SET OF CLIPS]
3235625
$325,49 Unit Price incl. VAT
10
ASM. GEARCASE [INCL. CASE BUSHING PLUGS SEAL VENT]
3235436
3236680
$1 343,99 Unit Price incl. VAT
11
KIT-PLUG DRAIN
2203738
$68,24 Unit Price incl. VAT
12
KIT-PLUG FILL
2203739
$83,99 Unit Price incl. VAT
13
KIT GEAR HOUSING & PINION GEAR [INCL. PINION PIN BEARING SNAP RING RING GEAR]
3235636
3239382
$1 280,99 Unit Price incl. VAT
14
KIT-TORSION SPRING AND RETAINER [INCLUDES 22 & 26]
3235712
$68,24 Unit Price incl. VAT
15
ASM. COVER INPUT [INCL. O-RING COVER BUSHING SEAL]
3235843
$330,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
