1
Engine displacement
850
2
Year
2019
3
Trim
SCRAMBLER 850 48"
4
Parts Catalog

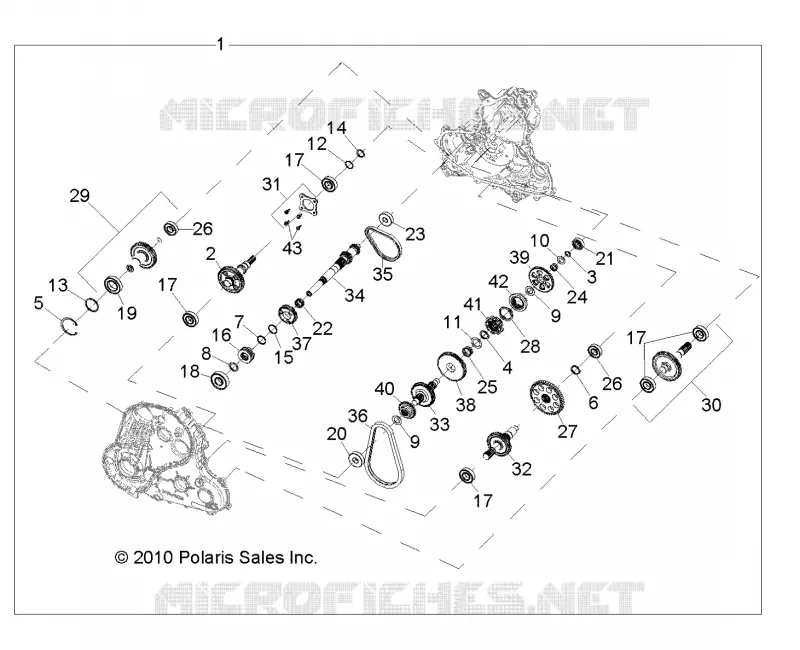

DRIVE TRAIN, MAIN GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEARCASE MOUNTING, FRONT
by
DRIVE TRAIN, PROP SHAFT, FRONT
DRIVE TRAIN, MAIN GEARCASE INTERNALS
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
17
17
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
31
1
2
3
4
5
6
6
7
8
8
9
9
10
10
10
10
11
12
13
14
15
1
ASM. TRANSMISSION [INCL. ALL]
1332848
$4 866,74 Unit Price incl. VAT
2
SHAFT INPUT
3235194
$435,74 Unit Price incl. VAT
3
RING RETAINING EXTERNAL SHR-66
3234318
$5,76 Unit Price incl. VAT
4
RING RETAINING BASIC EXTERNA
3234327
$13,64 Unit Price incl. VAT
5
RING RETAINING BASIC INTERNAL 62MM
3234741
$17,84 Unit Price incl. VAT
6
RING RETAINING IRR 7200-118
3233699
$13,64 Unit Price incl. VAT
7
RING RETAINING EXTERNAL USC-112
3234641
$26,24 Unit Price incl. VAT
8
WASHER THRUST 1.300 X 0.995 X 0.065
3234248
$17,84 Unit Price incl. VAT
9
SHIM 1.35 OD X 0.818 ID
3234643
$68,24 Unit Price incl. VAT
10
SHIM 1.17 OD X 0.675 ID
3234644
$26,24 Unit Price incl. VAT
11
WASHER THRUST 1.568 OD X .1.110 ID
3234646
$41,99 Unit Price incl. VAT
12
KIT LUK INPUT SHAFT SHIM PACK
2204343
$54,59 Unit Price incl. VAT
13
KIT GTO PRIMARY SHIM PACK
2204268
$68,24 Unit Price incl. VAT
14
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
15
WASHER THRUST � 33 X � 29 X 1.5
3234757
$20,99 Unit Price incl. VAT
16
DOG ENGAGEMENT GTO HIGH
3235190
$136,49 Unit Price incl. VAT
17
BEARING
3233019
$54,59 Unit Price incl. VAT
18
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
19
BEARING BALL 6007 C3 35 X 62 X 14
3233265
$68,24 Unit Price incl. VAT
20
BEARING BALL 6304 C3 20X52X15
3234651
$27,29 Unit Price incl. VAT
21
BEARING BALL 6203 17 X 40 X 12
3234274
$47,24 Unit Price incl. VAT
22
BEARING NEEDLE SPLIT CAGE
3234759
$27,29 Unit Price incl. VAT
23
BEARING BALL 6303 17 X 47 X 14
3234652
$27,29 Unit Price incl. VAT
24
BEARING NEEDLE CAGE ASSY 20 X 24 X 10
3234655
$27,29 Unit Price incl. VAT
25
BEARING NEEDLE 28 X 33 X 13
3234656
$27,29 Unit Price incl. VAT
26
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
27
SPROCKET 44 TOOTH
3234998
$125,99 Unit Price incl. VAT
28
SPRING WAVE 1.60 ID X 0.375
3234688
$19,94 Unit Price incl. VAT
29
SUBASSEMBLY PRIMARY SHAFT W/BEARINGS (#46 & #25)
3235191
$577,49 Unit Price incl. VAT
30
SUBASSY OUTPUT FRONT W/BEARINGS (#27)
3234723
$414,74 Unit Price incl. VAT
31
SUBASSY BEARING COVER W/SCREWS (#3)
3235198
$40,94 Unit Price incl. VAT
32
SHAFT OUTPUT REAR
3235195
$430,49 Unit Price incl. VAT
33
Shaft Reverse 53T
3234774
$367,49 Unit Price incl. VAT
34
SHAFT INPUT 25T REM
3235063
$593,24 Unit Price incl. VAT
35
CHAIN SILENT TYPE 101 .25P X .40W X 58L
3234737
$314,99 Unit Price incl. VAT
36
CHAIN SILENT 0.5 X .375P X 64P
3234738
$456,74 Unit Price incl. VAT
37
GEAR HELICAL 42T
3235133
$152,24 Unit Price incl. VAT
38
GEAR 67T
3234706
$173,24 Unit Price incl. VAT
39
SPROCKET 48T 6-FACE
3234707
$68,24 Unit Price incl. VAT
40
SPROCKET 23T
3234708
3235544
$73,49 Unit Price incl. VAT
41
DOG ENGAGEMENT GTO LOW
3234718
$346,49 Unit Price incl. VAT
42
DOG ENGAGEMENT GTO REV/LOW
3235341
$335,99 Unit Price incl. VAT
43
SUBASSY BEARING COVER W/SCREWS (#3)
3235198
$40,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
