1
Engine displacement
500
2
Year
1999
3
Trim
SPORTSMAN 500 - A99CH50AB
4
Parts Catalog
GEARCASE (INTERNAL COMPONENTS)
5
Parts Diagram
Parts Catalog
GEARCASE (CASES AND SNORKEL)
by
INLET EXHAUST

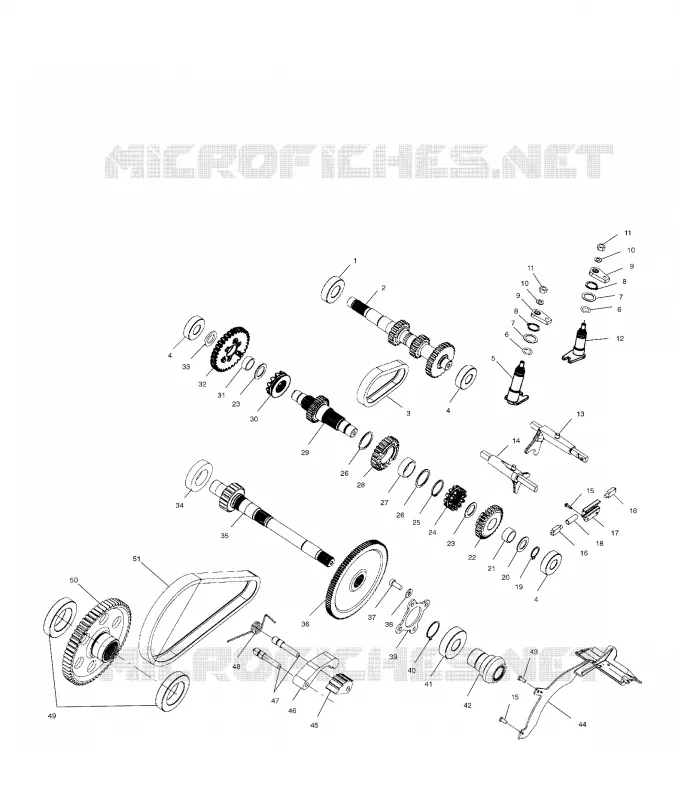

GEARCASE (INTERNAL COMPONENTS)
-
SHAFT ASM GEARCASE (PRD) (See Footnote)
1341277
Not Available
1
BEARING
3233019
$54,59 Unit Price incl. VAT
2
SHAFT INPUT 31T HCR
3233361
Not Available
3
CHAIN SILENT 34P
3233036
Not Available
4
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
5
SHAFT-SHIFT
3233661
Not Available
6
O-RING
3233548
$52,49 Unit Price incl. VAT
7
WASHER
3233040
$17,84 Unit Price incl. VAT
8
RING RETAINING BASIC EXTERNAL 0.75
3233045
$9,44 Unit Price incl. VAT
9
BELLCRANK
3233153
$62,99 Unit Price incl. VAT
10
WASHER
3233054
$12,59 Unit Price incl. VAT
11
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
12
SHAFT-SHIFT
3233662
Not Available
13
FORK SHIFT LOW
3233663
Not Available
14
FORK SHIFT H/R
3233664
Not Available
15
SCREW Substituted by 3233747
3233033
Not Available
16
PIN INTERLOCK
3233308
Not Available
17
BRACKET INTERLOCK
3233309
$33,06 Unit Price incl. VAT
18
SPRING
3233189
Not Available
19
RING RETAINING
3233177
$12,59 Unit Price incl. VAT
20
WASHER THRUST 1.270 X 0.793 X 0.065
3233176
$17,84 Unit Price incl. VAT
21
BEARING BALL
3233017
$60,89 Unit Price incl. VAT
22
GEAR 30T
3233668
Not Available
23
WASHER
3233010
Not Available
24
ENGAGEMENT-DOG
3233667
Not Available
25
RING RETAINING
3233029
$10,49 Unit Price incl. VAT
26
WASHER
3233012
Not Available
27
BEARING NEEDLE CAGE ASSY
3233014
$74,54 Unit Price incl. VAT
28
SPROCKET 24T 12-POINT
3233532
Not Available
29
SHAFT REV 29T HCR
3233362
Not Available
30
ENGAGEMENT-DOG LOW
3233666
Not Available
31
BEARING NEEDLE SPLIT CAGE 22 X 26 X 10
3233009
$68,24 Unit Price incl. VAT
32
GEAR 33T
3233665
Not Available
33
WASHER
3233007
Not Available
34
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
35
SHAFT CTR DRIVE
3233485
Not Available
36
GEAR O/P 100T HCR
3233360
Not Available
37
SCREW
3233262
$3,14 Unit Price incl. VAT
38
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
39
COVER CTR.DRIVE BRG.
3233263
Not Available
40
RING RETAINING SHAFT DIA. 1.375
3233364
$12,59 Unit Price incl. VAT
41
BEARING BALL 6007 C3 35 X 62 X 14
3233265
$68,24 Unit Price incl. VAT
42
GEAR 16T SPIRAL BEVEL SNORKEL
3233365
Not Available
43
SCREW
3233282
Not Available
44
DEFLECTOR-OIL
3233669
Not Available
45
CAM CHAIN TENSIONER
3233434
$26,24 Unit Price incl. VAT
46
SHOE CHAIN TENSIONER
3233433
$62,99 Unit Price incl. VAT
47
PIN TENSIONER
3233432
$13,64 Unit Price incl. VAT
48
SPRING TORSION
3233431
$47,24 Unit Price incl. VAT
49
BEARING BALL 6010 C3 50 X 80 X 10
3233268
$88,19 Unit Price incl. VAT
50
SPOCKET-60T 36T SP
3233670
Not Available
51
CHAIN SILENT
3233430
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
