1
Engine displacement
500
2
Year
1999
3
Trim
SPORTSMAN 500 - A99CH50AB
4
Parts Catalog
REAR DRIVE SHAFT
5

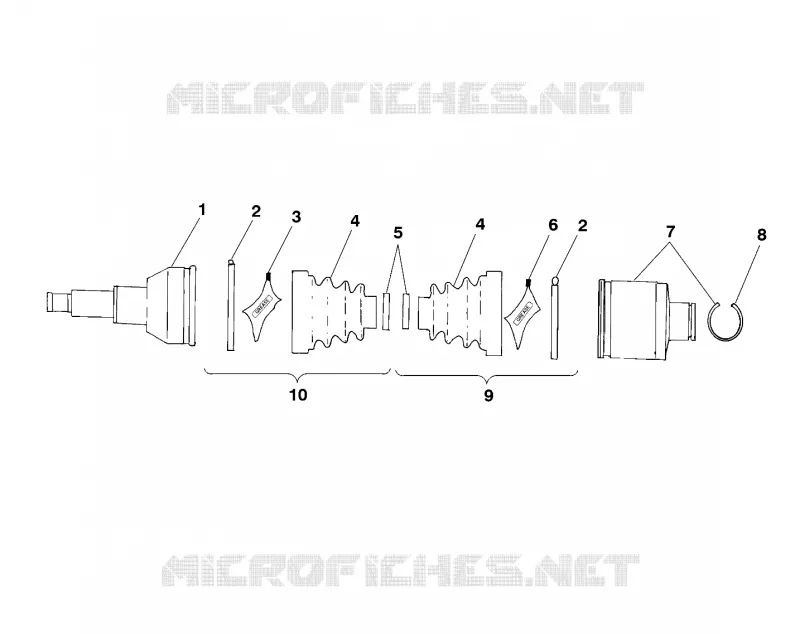

Parts Diagram
Parts Catalog
CV JOINT
by
PROP SHAFT
REAR DRIVE SHAFT
-
SHAFT DRIVE REAR BTB (Incl. 1-8)
1380142
Not Available
1
CV JOINT
1590280
Not Available
2
Clamp Large
1350044
$8,39 Unit Price incl. VAT
3
Grease 30g
1350046
$27,29 Unit Price incl. VAT
4
BOOT-REAR SHAFT BTB
1350045
Not Available
5
Clamp Small
1350043
$14,69 Unit Price incl. VAT
6
Grease 50g
1350047
$27,29 Unit Price incl. VAT
7
PLUNGING JOINT
1590281
Not Available
8
SPRING-RING
1350042
$5,24 Unit Price incl. VAT
9
BOOT KIT(GEAR SIDE) (Gear Side)
2201374
2202904
$99,74 Unit Price incl. VAT
10
Kit Boot Wheel Side
2201373
$89,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
