1
Engine displacement
1050
2
Year
1997
3
Trim
INTL SLTX - I974590
4
Parts Catalog
DRIVE SYSTEM SLTX B974590 AND INTL. SLTX I974590 (4941214121B002)
5
Parts Diagram
Parts Catalog
FUEL SYSTEM SLTX B974590 AND INTL. SLTX I974590 (4941214121A011)
by
PROPULSION SLTX B974590 AND INTL. SLTX I974590 (4941214121B003)

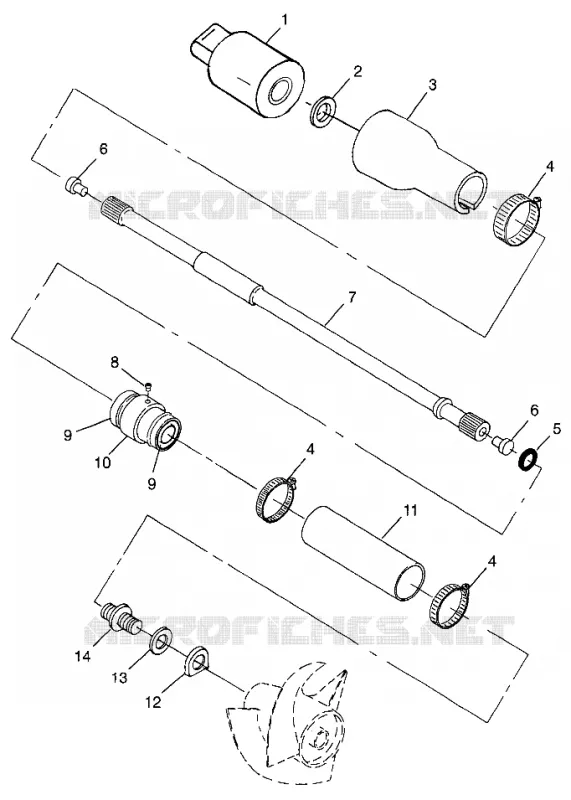

DRIVE SYSTEM SLTX B974590 AND INTL. SLTX I974590 (4941214121B002)
1
2
3
4
4
4
5
6
6
7
8
9
9
10
11
12
13
14
1
2
3
4
4
4
5
6
6
7
8
9
9
10
11
12
13
14
1
COUPLER ASM DRIVE
1060119
Not Available
2
O RING (10)
5410735
$1,04 Unit Price incl. VAT
3
SHROUD COUPLER
5432129
Not Available
4
CLAMP HOSE(10) Substituted by 7080870
7080481
$4,08 Unit Price incl. VAT
5
O-RING(10)
5410731
Not Available
6
BUMPER DRIVE SHAFT
5410663
Not Available
7
SHAFT DRIVE Substituted by 6230205
6230103
Not Available
8
FITTING LUBE.
7080629
$9,02 Unit Price incl. VAT
9
SEAL
3610040
Not Available
10
HOUSING BEARING
1341145
Not Available
11
HOSE BRG.HSG.
5411027
Not Available
12
NUT SHAFT HSG.
5431985
Not Available
13
O-RING
5411174
$3,14 Unit Price incl. VAT
14
HSG SHAFT THRU-HULL O-RING
5432298
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
