1
Engine displacement
1050
2
Year
1997
3
Trim
INTL SLTX - I974590
4
Parts Catalog

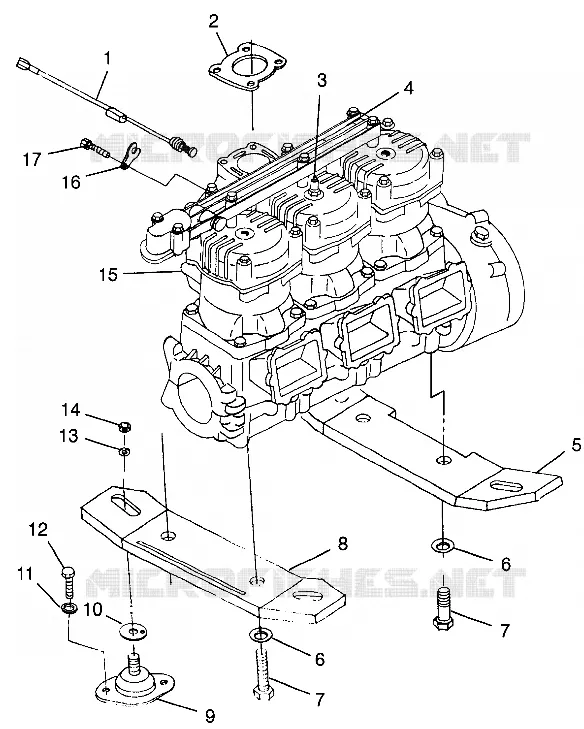

ENGINE MOUNTING SLTX B974590 AND INTL. SLTX I974590 (4941214121B001)
5
Parts Diagram
Parts Catalog
STEERING SLTX B974590 AND INTL. SLTX I974590 (4941214121A014)
by
COOLING SYSTEM SLTX B974590 AND INTL. SLTX I974590 (4941214121B006)
ENGINE MOUNTING SLTX B974590 AND INTL. SLTX I974590 (4941214121B001)
1
2
3
3
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
1
2
3
3
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
1
SWITCH TEMP 160DEG. Substituted by 2410075
4110223
Not Available
2
GASKET EXH.PIPE
5830051
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
PLATE F.MOUNT Substituted by 5631128
5630585
Not Available
6
WASHER LOCK S.S.
7552609
$2,82 Unit Price incl. VAT
7
SCREW SS.
7517330
Not Available
8
PLATE R.MOUNT Substituted by 5631129
5630584
Not Available
9
MT ENG ANTI-ROTATION Substituted by 3021103
3110055
Not Available
10
SHIM ENG.MT.(PWC)
5211727
Not Available
11
WASHER LOCK S.S.(10)
7552610
Not Available
12
BOLT S.S.(10)
7515361
$2,82 Unit Price incl. VAT
13
WASHER FLAT S.S.(10) (.02)
7555848
Not Available
14
NUT NYLOK S.S.(10) Substituted by 7547001
7542725
$4,61 Unit Price incl. VAT
15
KIT SHT.BLK.(1050 TRIPLE) [No Longer Available]
2200823
Not Available
16
CLIP RETAIN TEMP.SW.
5240876
$6,39 Unit Price incl. VAT
17
SCR-HXFL-M5X0.8X14 18-8
7516603
$19,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
