1
Engine displacement
500
2
Year
2004
3
Trim
A04BG50AA SCRAMBLER 500 4X4 - A04BG50AA/FA
4
Parts Catalog

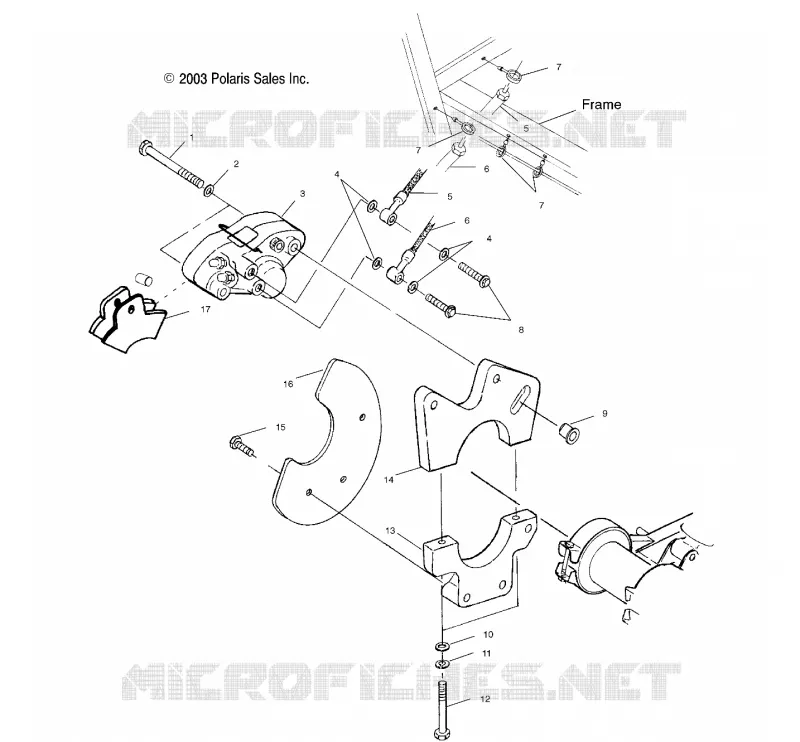

REAR CALIPER MOUNTING
5
Parts Diagram
Parts Catalog
WISHBONES
by
SWING ARM SHOCK
REAR CALIPER MOUNTING
1
2
3
3
3
3
3
4
4
5
5
6
6
7
7
7
8
9
10
11
12
13
14
15
16
17
17
17
1
2
3
4
5
6
7
8
9
10
11
12
13
1
SCREW(10)
7517231
$13,64 Unit Price incl. VAT
2
WASHER
7555806
$1,56 Unit Price incl. VAT
3
KIT SEAL CALIPER
2201385
$120,74 Unit Price incl. VAT
3
Kit Bleed Screw/Fitting (Incl. Dust Caps)
2202705
$89,24 Unit Price incl. VAT
3
Asm. Caliper
1910691
$488,24 Unit Price incl. VAT
3
BLEEDER SCREW 4WD
7080352
$5,76 Unit Price incl. VAT
3
Kit Piston Caliper
2201510
Not Available
4
SEAL
5410988
$9,44 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
LINE-BRAKE FR M/C TO RR CDS
1910506
Not Available
7
CLIP-SILENCER BOX-C 98 INDY
7670102
$4,19 Unit Price incl. VAT
8
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
9
Bushing Caliper Mount
5131759
Not Available
10
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
11
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
12
BOLT(10)
7512312
$2,09 Unit Price incl. VAT
13
Mount Caliper Lower
5131786
Not Available
14
MT UPR.CALIPER AXLE
5131787
Not Available
15
SCR-HH-5/16-18X0.75 GR5 ZY3 NY
7512325
$4,19 Unit Price incl. VAT
16
GUARD BRAKEDISC R.AXLE BLK
5242291067
Not Available
17
PIN
1930860
Not Available
17
SPACER PAD
1910339
Not Available
17
Kit Brake Pad
2202411
$56,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
