1
Engine displacement
570
2
Year
2013
3
Trim
RZR 570 EFI - R13VH57AD/6EAK
4
Parts Catalog
CHASSIS, MAIN FRAME AND SKID PLATE
5
Parts Diagram
Parts Catalog
CHASSIS, CAB FRAME AND SIDE BARS
by
DRIVE TRAIN, CLUTCH COVER AND DUCTING

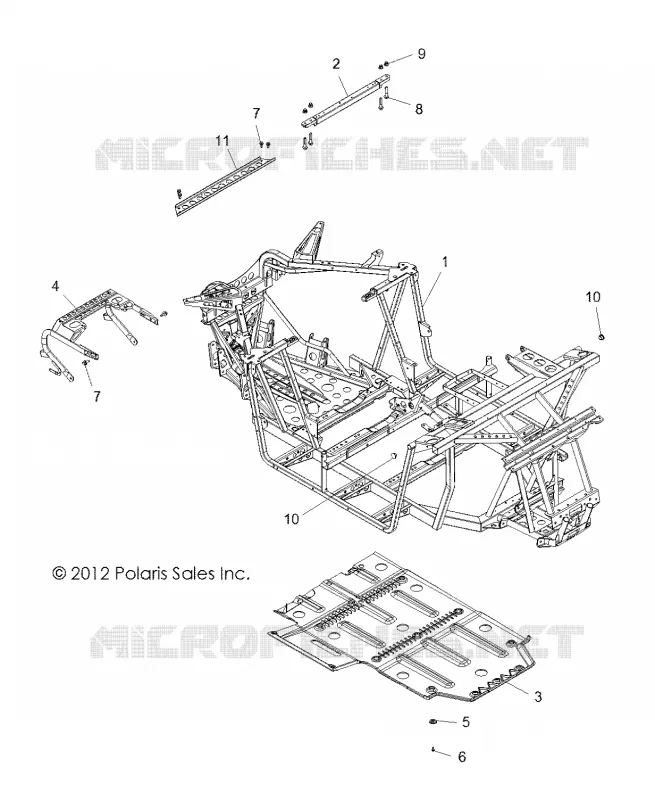

CHASSIS, MAIN FRAME AND SKID PLATE
1
2
3
4
5
6
7
7
8
9
10
10
11
1
Frame Main Matte Black
1019126458
Not Available
2
Brace Bolt In Rear Black
1018005458
$225,74 Unit Price incl. VAT
3
PLATE SKID BLACK
5438937070
$367,49 Unit Price incl. VAT
4
SUPPORT BUMPER REAR BLACK
1019125329
Not Available
5
WASHER-SKID PLATE
7556065
$8,39 Unit Price incl. VAT
6
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
7
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
8
SCR-HXFL-M10X1.25X55 10.9 ZOD
7519285
$4,19 Unit Price incl. VAT
9
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
10
CAPLUG
5437721
$12,59 Unit Price incl. VAT
11
Bracket Rear Brace Black
5254980458
5254980-329
$225,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
