1
Engine displacement
570
2
Year
2013
3
Trim
RZR 570 EFI - R13VH57AD/6EAK
4
Parts Catalog

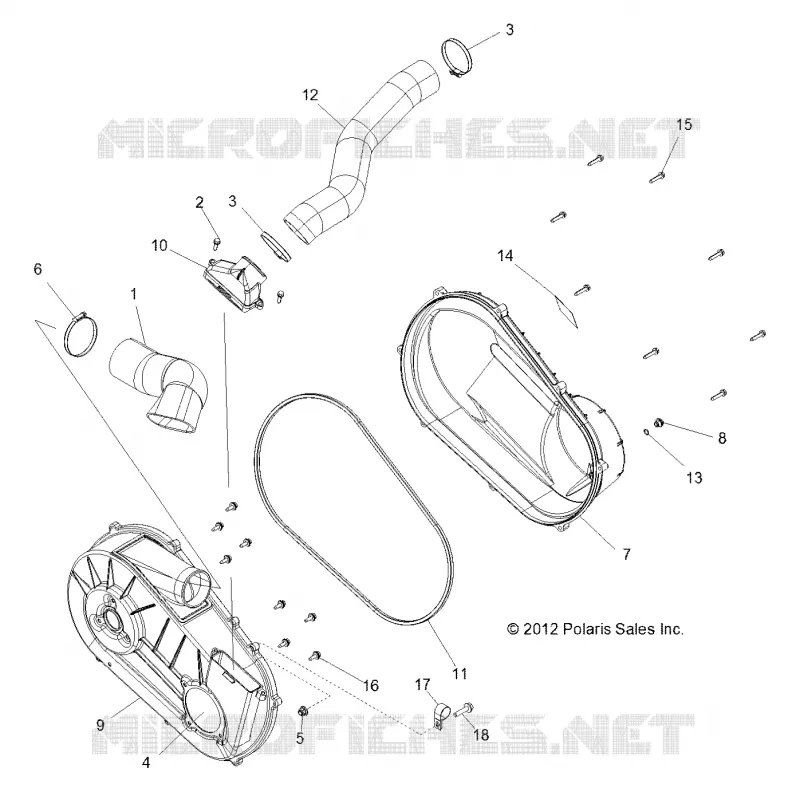

DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
CHASSIS, MAIN FRAME AND SKID PLATE
by
DRIVE TRAIN, FRONT HALF SHAFT
DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
1
Boot Outlet Clutch
5813831
$141,74 Unit Price incl. VAT
2
SCR-#14X1.0 LG HI/LO/TAPER-M
7512098
$3,14 Unit Price incl. VAT
3
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
6
CLAMP-BAND NARROW 70-90MM
7081279
$5,76 Unit Price incl. VAT
7
ASM. COVER CLUTCH OUTER [INCL. 6 7]
2634179
$346,49 Unit Price incl. VAT
8
PLUG-DRAIN CLUTCH COVER
5434264
$10,49 Unit Price incl. VAT
9
ASM-COVER CLUTCH INNER [INCL. 2 9 10 17]
2634188
$257,24 Unit Price incl. VAT
9
COVER CLUTCH INNER
5438889
2634188
$257,24 Unit Price incl. VAT
10
DUCT-CLUTCH AIR IN
5438891
$52,49 Unit Price incl. VAT
11
SEAL COVER CLUTCH OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
12
HOSE INTAKE CLUTCH
5414156
$136,49 Unit Price incl. VAT
13
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
14
DECAL-BELT WARNING/CHECK
7177469
Not Available
15
SCR-#14X1-1/4 LG HI/LO/TAPER-M
7512094
$3,14 Unit Price incl. VAT
16
SCR-TFHFL-M6X1.0X20 S/R ZOD
7519278
$9,44 Unit Price incl. VAT
17
CLAMP-VINYL COATED 1.00IN ID
7081854
$10,49 Unit Price incl. VAT
18
SCR-HXFL-M6X1.0X25 8.8 RIE
7518533
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
