1
Engine displacement
570
2
Year
2013
3
Trim
RZR 570 EFI - R13VH57AD/6EAK
4
Parts Catalog

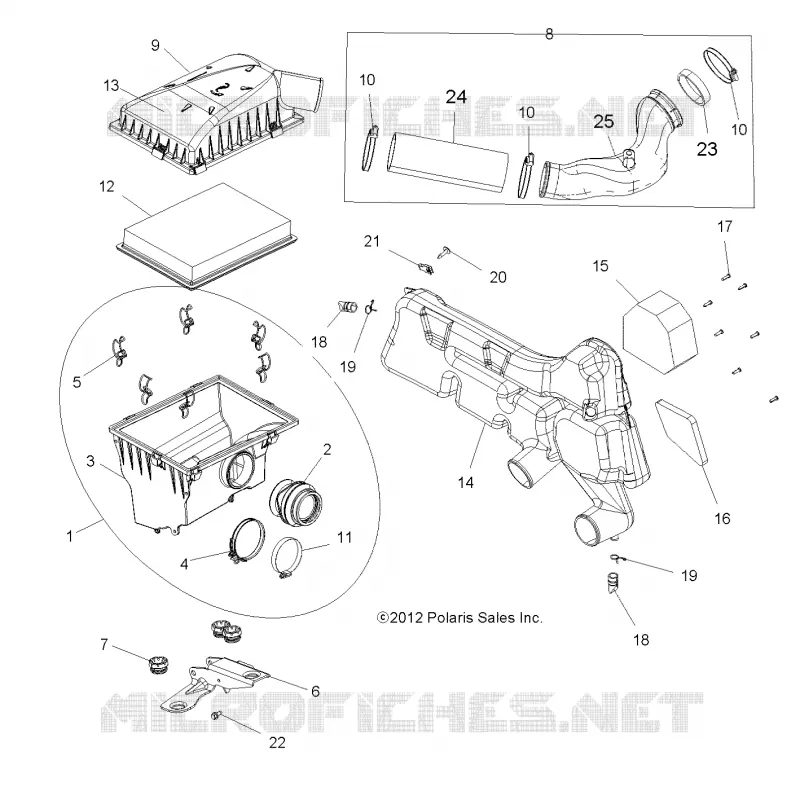

ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
WIRE HARNESS
by
CAM CHAIN AND SPROCKET
ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
6
7
8
9
10
10
10
11
12
13
14
14
15
16
17
18
18
19
19
20
21
22
23
24
25
1
ASM. AIRBOX MAIN [INCL. 1-5]
1240633
$167,99 Unit Price incl. VAT
2
BOOT AIRBOX
5414134
$47,24 Unit Price incl. VAT
3
BASE AIRBOX
5438897
$136,49 Unit Price incl. VAT
4
CLAMP AIRBOX
7081312
$20,99 Unit Price incl. VAT
5
CLIP-AIRBOX
7081707
$9,44 Unit Price incl. VAT
6
BRACKET MOUNT BLACK
5254922329
$52,49 Unit Price incl. VAT
7
GROMMET
5412507
$12,59 Unit Price incl. VAT
8
KIT INTAKE [INCL. 10 23-25][REPLACES HOSE FROM EARLY BUILD BEFORE 8/07/12]
2204982
$323,39 Unit Price incl. VAT
9
LID AIRBOX
5450157
$136,49 Unit Price incl. VAT
10
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
11
CLAMP-HOSE 70MM DIA. WORM GEAR
7081623
$5,76 Unit Price incl. VAT
12
FILTER AIR BOX MAIN
7081706
$57,63 Unit Price incl. VAT
13
DECAL FILTER MAINTENANCE
7177872
$13,64 Unit Price incl. VAT
14
Box Intake
5438884
$309,74 Unit Price incl. VAT
14
BOX INTAKE
5450598
$309,74 Unit Price incl. VAT
15
FILTER ENGINE IN
5813713
$68,24 Unit Price incl. VAT
16
FILTER CLUTCH IN
5813712
$26,24 Unit Price incl. VAT
17
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
18
CAP DRAIN
5412960
$31,49 Unit Price incl. VAT
19
Clamp Hose Spring .75 Inch
7080694
$10,49 Unit Price incl. VAT
20
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
21
NUT-1/4-20 U-TYPE(.080-.170)
7670145
$4,19 Unit Price incl. VAT
22
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
23
Hose Seal Engine Inlet
5414483
$23,09 Unit Price incl. VAT
24
Hose Inlet Engine
5414484
$99,74 Unit Price incl. VAT
25
Duct Engine Inlet
5439759
$120,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
