1
Engine displacement
500
2
Year
2001
3
Trim
SCRAMBLER 500 4X4 - A01BG50AB
4
Parts Catalog

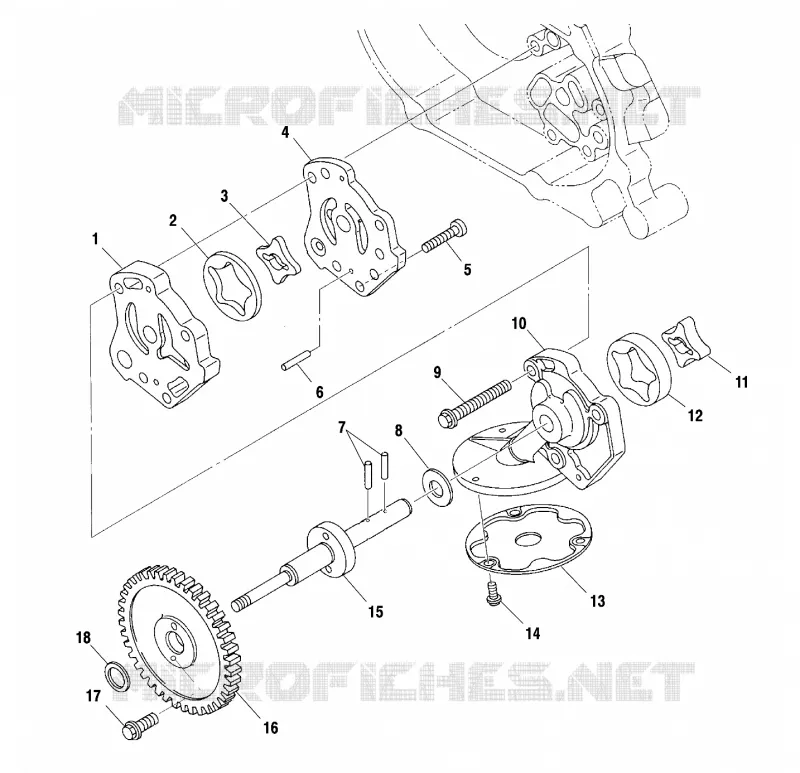

OIL PUMP
5
Parts Diagram
Parts Catalog
WATER PUMP
by
TOOL KIT
OIL PUMP
1
CASE #2 OILPUMP
3084946
$136,49 Unit Price incl. VAT
2
ROTOR OUTER FEED (Feed)
3084949
$83,99 Unit Price incl. VAT
3
ROTOR INNER FEED (Feed)
3084948
Not Available
4
CASE #1 OILPUMP
3084945
Not Available
4
PUMP ASM OIL (Incl. 1-8 10-14)
3085817
Not Available
5
SCREW(10)
3085535
Not Available
6
PIN DOWEL
3084955
Not Available
7
PIN DOWEL
3084954
$13,64 Unit Price incl. VAT
8
WASHER(10)
3084953
$6,29 Unit Price incl. VAT
9
BOLT&WASHER ASM.
3084962
Not Available
10
CASE #3 OILPUMP
3084947
$152,24 Unit Price incl. VAT
11
ROTOR INNER SCAV. (Scav)
3084950
$62,99 Unit Price incl. VAT
12
ROTOR OUTER
3090307
$89,24 Unit Price incl. VAT
13
STRAINER UNIT OIL
3084956
Not Available
14
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
15
SHAFT PUMP Substituted by 3085858
3085818
Not Available
16
PUMP GEAR(2)
3085859
Not Available
17
BOLT FLANGE
3085820
Not Available
18
SPACER (0.8)
3084959
$16,79 Unit Price incl. VAT
18
SPACER (1.0)
3084960
Not Available
18
SPACER (1.2)
3084961
$16,79 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
