1
Engine displacement
500
2
Year
2001
3
Trim
SCRAMBLER 500 4X4 - A01BG50AB
4
Parts Catalog
GEARCASE (IF BUILT AFTER 4/29/01)- A01BG50AA (4963766376E02)
5
Parts Diagram
Parts Catalog
TOOL KIT
by
FRONT BUMPER SHIELDS

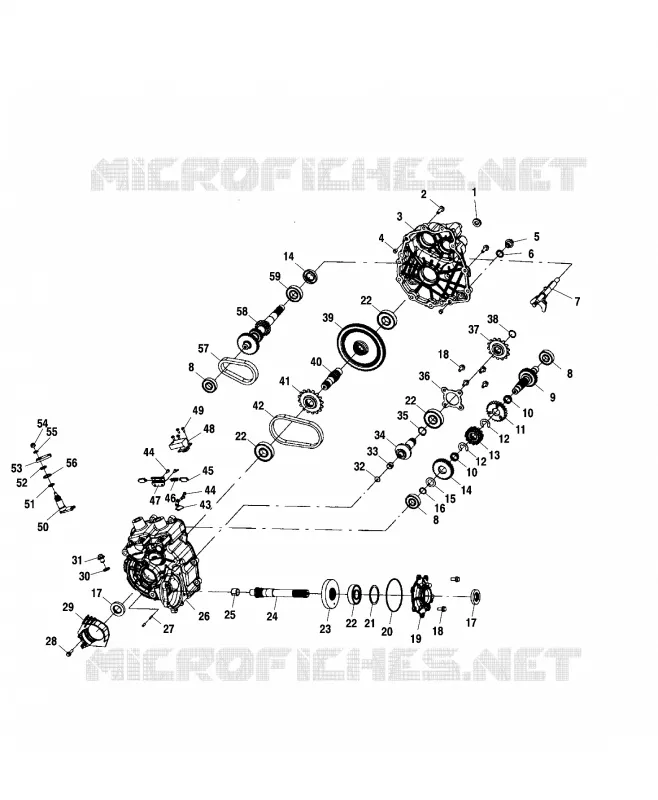

GEARCASE (IF BUILT AFTER 4/29/01)- A01BG50AA (4963766376E02)
-
Asm. Gearcase Main (Incl. All)(If built after 4/29/01)(See Gearcase Pg. C10 if built before 4/29/01) (Incl. All)(If built after 4/29/01)(See Gearcase Pg. C10 if built before 4/29/01)
1341382
Not Available
1
Bushing Pivot
3233527
$57,74 Unit Price incl. VAT
2
SCREW
3233252
$9,44 Unit Price incl. VAT
3
GEARCASE-LH
3233632
Not Available
4
PIPE KNOCK
3233529
$16,79 Unit Price incl. VAT
5
Plug
3233448
$41,99 Unit Price incl. VAT
6
Washer
3233035
Not Available
7
FORK SHIFT HIGH/REV
3233633
$262,49 Unit Price incl. VAT
8
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
9
SHAFT REVERSE 31T
3233728
$185,84 Unit Price incl. VAT
10
BEARING NEEDLE
3233718
$60,89 Unit Price incl. VAT
11
Sprocket 24T
3233719
$204,74 Unit Price incl. VAT
12
Ring Retaining
3233720
$17,84 Unit Price incl. VAT
13
DOG ENGAGEMENT HIGH/REV
3233721
$330,74 Unit Price incl. VAT
14
GEAR 30T
3233722
Not Available
15
WASHER THRUST 1.270 X 0.793 X 0.065
3233176
$17,84 Unit Price incl. VAT
16
RING RETAINING
3233177
$12,59 Unit Price incl. VAT
17
SEAL TRIPLE LIP
3233788
$57,74 Unit Price incl. VAT
18
Screw
3233539
Not Available
19
Cover Snorkel
3233556
Not Available
20
O-Ring
3233555
$11,01 Unit Price incl. VAT
21
Shim
3233554
$62,99 Unit Price incl. VAT
22
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
23
Gear 25T
3233898
$370,64 Unit Price incl. VAT
24
Shaft Snorkel
3233899
$246,74 Unit Price incl. VAT
25
BEARING
3233552
$41,99 Unit Price incl. VAT
26
Gearcase RH
3233896
$745,49 Unit Price incl. VAT
27
VENT
3233037
Not Available
28
SCREW
3233026
$12,59 Unit Price incl. VAT
29
Guide Chain
3233897
$89,24 Unit Price incl. VAT
30
WASHER
3233324
$13,64 Unit Price incl. VAT
31
PLUG OIL FILL
3233711
Not Available
32
Washer
3233542
$20,99 Unit Price incl. VAT
33
BUSHING GARLOCK
3233541
$41,99 Unit Price incl. VAT
34
Shaft Pinion 13T
3233540
$256,19 Unit Price incl. VAT
35
RING RETAINING BASIC EXT 0.938
3233306
$9,44 Unit Price incl. VAT
36
COVER CTR.DRIVE BRG.
3233263
Not Available
37
Sprocket 14/22T
3233538
Not Available
38
Ring Retaining
3233537
$10,49 Unit Price incl. VAT
39
Gear 98T
3233558
$342,29 Unit Price incl. VAT
40
Shaft Output
3233544
$262,49 Unit Price incl. VAT
41
Sprocket 16/26T
3233545
$94,49 Unit Price incl. VAT
42
Chain Roller
3233546
$120,74 Unit Price incl. VAT
43
Deflector Oil
3233043
$21,20 Unit Price incl. VAT
44
Screw
3233747
Not Available
45
PIN INTERLOCK
3233308
Not Available
46
SPRING SHIFT.INTERLOCK
3233550
Not Available
47
BRACKET INTERLOCK
3233309
$33,06 Unit Price incl. VAT
48
SWITCH-H/R ITW
3233635
$262,49 Unit Price incl. VAT
49
SCREW TAPPING TORX PH 11902 X.50
3233749
$10,49 Unit Price incl. VAT
50
Shaft Shift High/Low/Reverse
3233549
Not Available
51
O-RING
3233548
$52,49 Unit Price incl. VAT
52
RING RETAINING BASIC EXTERNAL 0.75
3233045
$9,44 Unit Price incl. VAT
53
Bellcrank
3233547
$89,24 Unit Price incl. VAT
54
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
55
WASHER
3233054
$12,59 Unit Price incl. VAT
56
WASHER
3233040
$17,84 Unit Price incl. VAT
57
CHAIN SILENT 34P
3233036
Not Available
58
SHAFT INPUT HI/REV.HCR.EXT.
3233536
Not Available
59
BEARING
3233019
$54,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
