1
Engine displacement
150
2
Year
2018
3
Trim
ACE 150 EFI 501S INDY
4
Parts Catalog
DRIVE TRAIN, PRIMARY CLUTCH
5

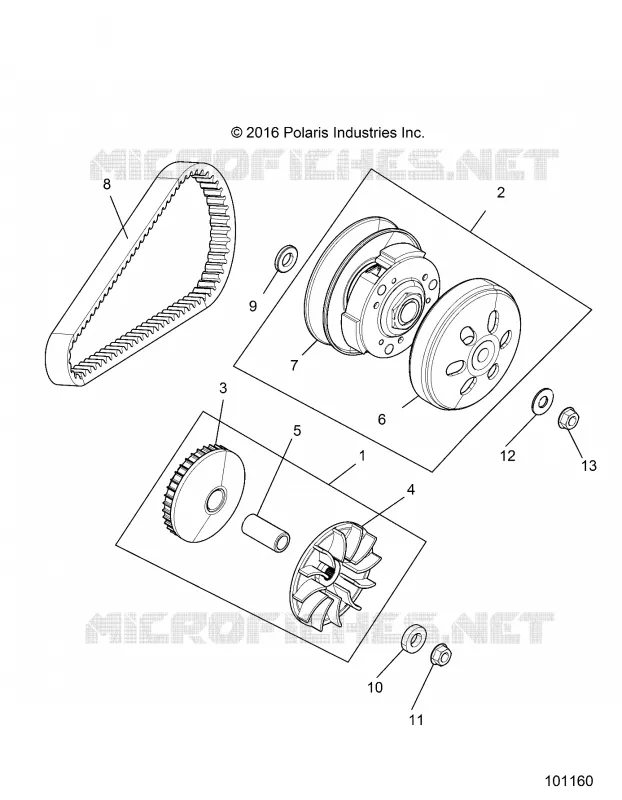

Parts Diagram
Parts Catalog
CHASSIS, MAIN FRAME
by
BATTERY
DRIVE TRAIN, PRIMARY CLUTCH
1
2
3
4
5
6
7
8
9
10
11
12
13
1
ASM-DRIVING PULLEY
3050098
$330,74 Unit Price incl. VAT
2
ASM-DRIVEN PULLEY
3050099
$404,24 Unit Price incl. VAT
3
DRIVING WHEEL SKATE COMBO.
3050100
3050098
$330,74 Unit Price incl. VAT
4
DRIVING PULLEY FIXING PLATE
3050200
3050098
$330,74 Unit Price incl. VAT
5
DRIVE GEAR SLEEVE
3050219
3050098
$330,74 Unit Price incl. VAT
6
DRIVEN DISC COMP.
3050234
3050099
$404,24 Unit Price incl. VAT
7
DRIVEN PULLEY COMP.
3050255
3050099
$404,24 Unit Price incl. VAT
8
V-BELT
3050270
$96,59 Unit Price incl. VAT
9
WASHER 15.2X29X4
3050271
$1,04 Unit Price incl. VAT
10
WASHER 15.2X29X7.5
3050276
$6,29 Unit Price incl. VAT
11
NUT M12X1.25X8
3050341
$7,34 Unit Price incl. VAT
12
WASHER
3050283
$6,29 Unit Price incl. VAT
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
