1
Engine displacement
150
2
Year
2018
3
Trim
ACE 150 EFI 501S INDY
4
Parts Catalog

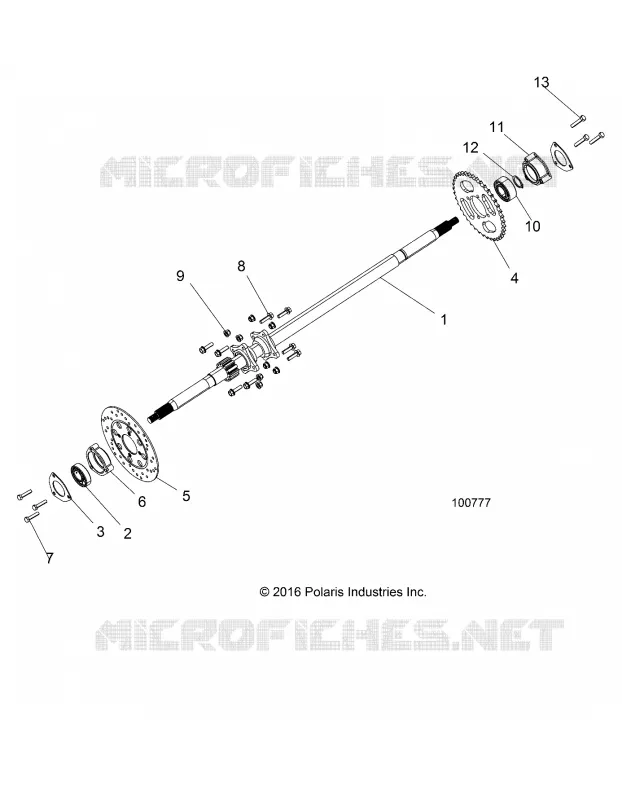

REAR SUSPENSION AXLE
5
Parts Diagram
Parts Catalog
STEERING
by
FRONT BUMPER
REAR SUSPENSION AXLE
1
2
3
4
5
6
7
8
9
10
11
12
13
1
WELD-AXLE REAR
1590581
$367,49 Unit Price incl. VAT
2
BEARING-WHEEL 6206-2RS
3514995
$40,94 Unit Price incl. VAT
3
PLATE-RETAINER BEARING
5263896
$11,54 Unit Price incl. VAT
4
SPROCKET-DRIVE 50P 39T
3222267
$246,74 Unit Price incl. VAT
5
DISC-BRAKE REAR
1912810
$141,74 Unit Price incl. VAT
6
HOUSING AXLE BRG-6150/7150
5633734
$27,29 Unit Price incl. VAT
7
SCR-M8X1.25X40 10.9 HX/FL ZOD
7518954
$10,49 Unit Price incl. VAT
8
SCREW-HXFL-M8X1.25X30 10.9 ZPB
7518884
$3,66 Unit Price incl. VAT
9
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
10
BEARING-3206-2RZ
3515019
$40,94 Unit Price incl. VAT
11
HOUSING-AXLE BEARING DBL ROW
5633825
$47,24 Unit Price incl. VAT
12
RING-RETAINER EXTERNAL 30X2.0
7710867
$3,14 Unit Price incl. VAT
13
SCR-HXFL-M8X1.25X50 8.8 ZODP30
7519077
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
