1
Engine displacement
300
2
Year
1997
3
Trim
XPRESS 300 - W97CA28C
4
Parts Catalog

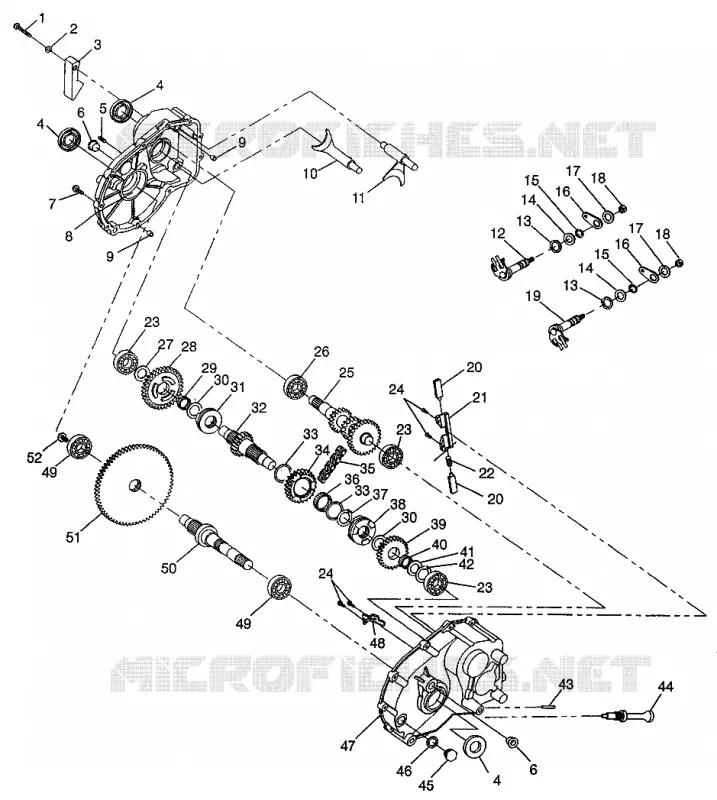

GEARCASE XPRESS 300 W97CA28C AND XPRESS 400L W97CA38C (4939603960D001)
5
Parts Diagram
Parts Catalog
REAR BRAKE XPRESS 300 W97CA28C AND XPRESS 400L W97CA38C (4939603960C010)
by
CRANKCASE AND CYLINDER (300) XPRESS 300 W97CA28C (4939603960D003)
GEARCASE XPRESS 300 W97CA28C AND XPRESS 400L W97CA38C (4939603960D001)
-
-
1
2
3
4
4
4
5
6
6
7
8
9
9
10
11
12
13
13
14
14
15
15
16
16
17
17
18
18
19
20
20
21
22
23
23
23
24
24
25
26
27
28
29
30
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
49
50
51
52
-
-
1
2
3
4
4
4
5
6
6
7
8
9
9
10
11
12
13
13
14
14
15
15
16
16
17
17
18
18
19
20
20
21
22
23
23
23
24
24
25
26
27
28
29
30
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
49
50
51
52
-
GEARCASE ASM PRD. (Incl. 1-52)
1341147
Not Available
-
GEARCASE ASM (400 EURO.) (Incl. 1-55)
1341158
Not Available
1
BOLT (10)
7512265
$7,34 Unit Price incl. VAT
2
WASHER-.5X.262X.06(16 GA)-Y
7555827
$7,34 Unit Price incl. VAT
3
DAMPENER CARBURETOR
5432082
Not Available
4
SEAL
3233248
3233788
$57,74 Unit Price incl. VAT
5
STUD
3233025
Not Available
6
BUSHING PIVOT
3233024
Not Available
7
SCREW
3233026
$12,59 Unit Price incl. VAT
8
CASE LH
3233002
Not Available
9
PIPE KNOCK
3233021
Not Available
10
SHIFTRAIL LOW
3233022
Not Available
11
SHIFTRAIL HIGH/REV.
3233023
Not Available
12
SHAFT LOW SHIFT
3233038
Not Available
13
O-RING Substituted by 3233548
3233044
$52,49 Unit Price incl. VAT
14
WASHER
3233040
$17,84 Unit Price incl. VAT
15
RING RETAINING BASIC EXTERNAL 0.75
3233045
$9,44 Unit Price incl. VAT
16
BELLCRANK
3233153
$62,99 Unit Price incl. VAT
17
WASHER
3233054
$12,59 Unit Price incl. VAT
18
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
19
SHAFT HI/REV SHIFT
3233039
Not Available
20
PIN
3233031
$51,44 Unit Price incl. VAT
21
BRACKET
3233030
$34,32 Unit Price incl. VAT
22
SPRING
3233032
$26,24 Unit Price incl. VAT
23
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
24
SCREW Substituted by 3233747
3233033
Not Available
25
SHAFT INPUT
3233122
Not Available
26
BEARING
3233019
$54,59 Unit Price incl. VAT
27
WASHER
3233007
Not Available
28
GEAR 33T
3233125
Not Available
29
BEARING NEEDLE SPLIT CAGE 22 X 26 X 10
3233009
$68,24 Unit Price incl. VAT
30
WASHER
3233010
Not Available
31
DOG ENGAGEMENT LOW
3233126
Not Available
32
SHAFT REVERSE
3233175
$474,59 Unit Price incl. VAT
33
WASHER
3233012
Not Available
34
SPROCKET 24T
3233127
Not Available
35
CHAIN SILENT 34P
3233036
Not Available
36
BEARING NEEDLE CAGE ASSY
3233014
$74,54 Unit Price incl. VAT
37
RING RETAINING
3233029
$10,49 Unit Price incl. VAT
38
DOG ENGAGEMENT HI/REV.
3233128
Not Available
39
GEAR 25T
3233129
Not Available
40
BEARING BALL
3233017
$60,89 Unit Price incl. VAT
41
WASHER THRUST 1.270 X 0.793 X 0.065
3233176
$17,84 Unit Price incl. VAT
42
RING RETAINING
3233177
$12,59 Unit Price incl. VAT
43
VENT
3233037
Not Available
44
DIPSTICK Substituted by 3233478
3233115
$52,49 Unit Price incl. VAT
45
Plug
3233448
$41,99 Unit Price incl. VAT
46
Washer
3233035
Not Available
47
CASE RH
3233003
Not Available
48
Deflector Oil
3233043
$21,20 Unit Price incl. VAT
49
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
50
SHAFT OUTPUT
3233140
Not Available
51
GEAR 65T
3233130
Not Available
52
BUSHING SPEEDO.DRIVE
5020741
$14,48 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
