Parts Catalog

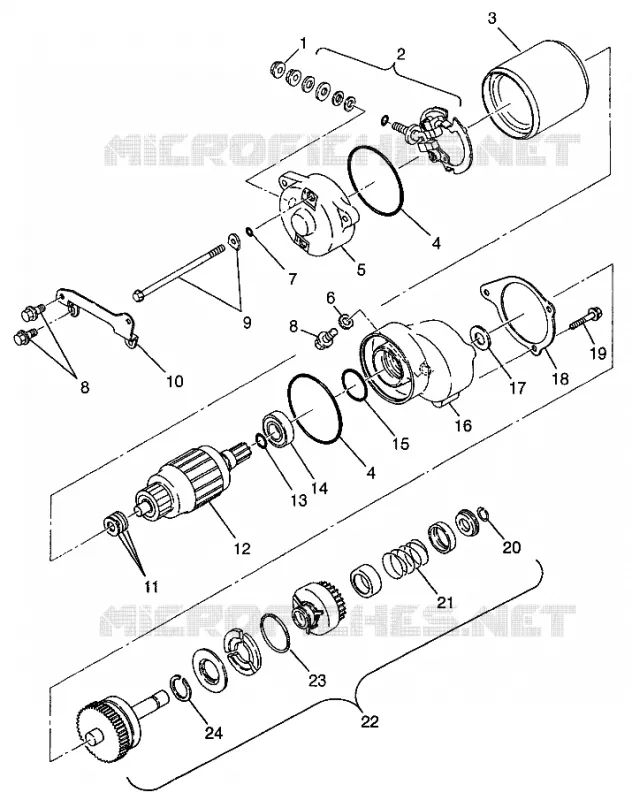

STARTING MOTOR (400L) XPRESS 400L W97CA38C (4939603960D012)
5
Parts Diagram
Parts Catalog
CRANKSHAFT AND PISTON (300) XPRESS 300 W97CA28C (4939603960D007)
by
OIL PUMP (300) XPRESS 300 W97CA28C (4939603960D013)
STARTING MOTOR (400L) XPRESS 400L W97CA38C (4939603960D012)
1
2
3
4
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
NUT FLANGE(10)
3083649
$7,34 Unit Price incl. VAT
2
BRUSH COMPL.2-POLE *
3084406
$230,99 Unit Price incl. VAT
3
MOTOR ASM STARTER Substituted by 3087043
3085392
Not Available
4
RING RUBBER
3084405
Not Available
5
COVER REAR STARTER(300-400)
3085032
$132,29 Unit Price incl. VAT
6
GASKET ALUM (10) Substituted by 7555998
3082758
7555998
$2,09 Unit Price incl. VAT
7
O-RING
3084408
Not Available
8
BOLT FLANGE(10) Substituted by 3087035
3083568
7520710
$7,34 Unit Price incl. VAT
9
BOLT THROUGH (#J# Model Only)
3084407
Not Available
10
BRACKET Substituted by 3086780
3084214
Not Available
11
WASHER SET
3083754
$4,19 Unit Price incl. VAT
12
ARMATURE ASM. *
3084404
$333,89 Unit Price incl. VAT
13
O RING
3083934
Not Available
14
BALL BEARING
3083777
$54,59 Unit Price incl. VAT
15
O RING
3083741
Not Available
16
COVER FRT COMPLETE
3085305
Not Available
17
WASHER GEARSHAFT Substituted by 7555908
3083737
7556994
$6,29 Unit Price incl. VAT
18
GASKET STARTER(NON-ASBESTOS)
3085283
Not Available
19
BOLT FLANGE Substituted by 3086781
3084215
$9,44 Unit Price incl. VAT
20
CLIP
3084409
$13,64 Unit Price incl. VAT
21
SPRING RETURN
3084410
$3,98 Unit Price incl. VAT
22
SHAFT ASM GEAR Substituted by 3087030 (Incl. 13-17)
3085394
$456,74 Unit Price incl. VAT
23
SPRING WEIGHT
3084411
$25,08 Unit Price incl. VAT
24
CLIP
3084412
$17,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
