1
Engine displacement
650
2
Year
1991
3
Trim
SWE 650 - S910758
4
Parts Catalog

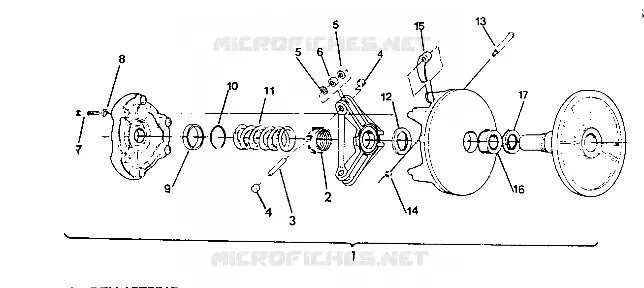

DRIVE CLUTCH ASM. 650 AND 650 SKS TO SERIAL NUMBER 1825512 (4919261926012A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH ASM. 650 AND 650 SKS (4919261926011A)
by
DRIVE CLUTCH ASM. 650 AND 650 SKS FROM SERIAL NUMBER 1825512 (4919261926012B)
DRIVE CLUTCH ASM. 650 AND 650 SKS TO SERIAL NUMBER 1825512 (4919261926012A)
1
CLUTCH BASIC#21 DRIVE Substituted by 1321578 (Incl. 2-8) (600)
1321480
Not Available
2
Nut Jam
5020425
$41,99 Unit Price incl. VAT
3
PIN-ROLLER
5020422
$4,19 Unit Price incl. VAT
4
BUTTON Substituted by 5430445
5430728
5430445
$11,54 Unit Price incl. VAT
5
WASHER
5430945
5438247
$3,14 Unit Price incl. VAT
6
ASM-ROLLER AND BUSHING
1321457
$73,49 Unit Price incl. VAT
7
BOLT (10)
7512265
$7,34 Unit Price incl. VAT
8
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
9
BEARING COVER (10)
3576510
$16,79 Unit Price incl. VAT
10
RING RETAINING COVER
7710417
$2,09 Unit Price incl. VAT
11
SPRING-CLUTCH(GOLD)
7041148
$115,49 Unit Price incl. VAT
12
SPACER-1.350 X 1.750 X .050-Y
5210754
$6,29 Unit Price incl. VAT
13
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
7512266
$5,76 Unit Price incl. VAT
14
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
15
WT SHIFT 10-A-L(6) Substituted by 1321531
5630368
$83,99 Unit Price incl. VAT
16
SLEEVE BEARING
3576502
$40,94 Unit Price incl. VAT
17
INSERT MOVEABLE
5010188
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
