1
Engine displacement
650
2
Year
1991
3
Trim
SWE 650 - S910758
4
Parts Catalog
STEERING 650 AND 650 SKS (4919261926009A)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI 650 AND 650 SKS (4919261926007A)
by
SUSPENSION 650 AND 650 SKS (4919261926015A)

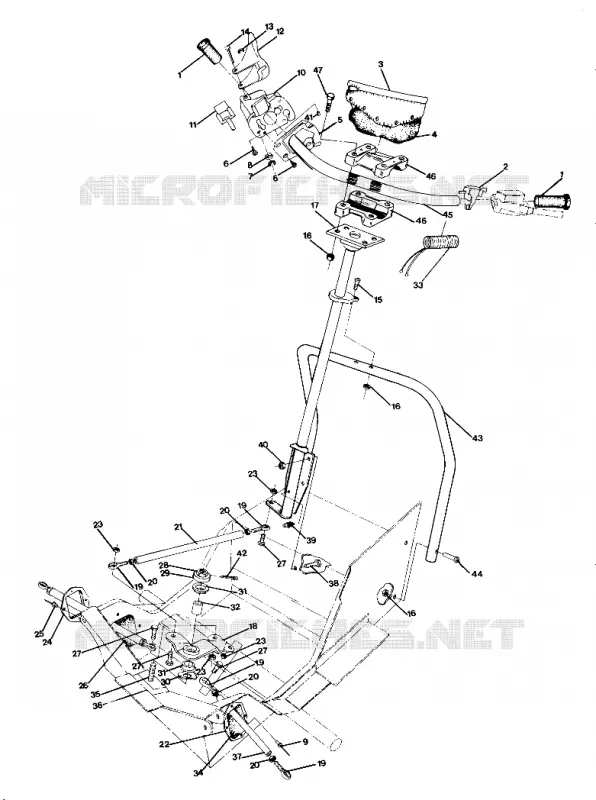

STEERING 650 AND 650 SKS (4919261926009A)
1
GRIP H#BAR RED Substituted by 5410272-067
5410272093
$52,49 Unit Price incl. VAT
2
Switch Dimmer
4110107
$115,49 Unit Price incl. VAT
3
PAD H#BAR BLACK
2690038
Not Available
4
PAD HANDLEBAR
5810448
Not Available
5
ADAPTOR BLOCK
5430604
$26,24 Unit Price incl. VAT
6
SCR-6X3/8 PH TR HD GR5-Y
7511848
$7,34 Unit Price incl. VAT
7
RING RETAINING
7710401
$7,34 Unit Price incl. VAT
8
WASHER
7555730
$7,34 Unit Price incl. VAT
9
POP RIVET(50)
7621303
Not Available
10
BLOCK THROTTLE Substituted by 5431265
5431076
5431592
$73,49 Unit Price incl. VAT
11
SWITCH AUX.SHUT-OFF
4110106
$141,74 Unit Price incl. VAT
12
LEVER-THROTTLE (600 600 SE)
5430638
Not Available
13
RING RETAINING
7710503
$7,34 Unit Price incl. VAT
14
PIN RETAINING
7661624
$23,09 Unit Price incl. VAT
15
SCREW(10) Substituted by 7512183
7512121
Not Available
16
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
17
POST STEERING Substituted by 1823144-067
1823144
Not Available
18
ARM STEERING CTR. Substituted by 1822047-067 (600 600 SE)
1822047
Not Available
19
ROD END RH Substituted by 7060165
7060125
7060165
$99,74 Unit Price incl. VAT
19
ROD END LH Substituted by 7060164
7060124
7060164
$99,74 Unit Price incl. VAT
20
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
20
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
21
ROD-DRAG LINK
5332712
Not Available
22
PLATE LH BOOTSEAL Substituted by 5210959-067
5210959
Not Available
23
Nut
7542403
Not Available
24
PLATE RH BOOT SEAL
5210904
Not Available
25
RIVET(50)
7621301
Not Available
26
BOOT-TIE ROD
5410328
Not Available
27
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
28
NUT(10)
7542712
$17,84 Unit Price incl. VAT
29
WASHER
7555721
$2,09 Unit Price incl. VAT
30
WASHER-WAVE 7/8X1X.010
7555735
$7,34 Unit Price incl. VAT
31
BUSHING
3563907
$7,34 Unit Price incl. VAT
32
BUSHING-SPACER
5010161
Not Available
33
HEATER H#BAR HI-LOW (500 Classic & 650 Only}
2460276
Not Available
34
BOOT LH
5410388
Not Available
35
BOLT(10)
7512658
Not Available
36
BLOCK-CTR.STEERING
5130534
Not Available
37
ROD TIE Substituted by 5332713-067
533271303
Not Available
38
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
39
FITTING-LUBE.(10) Substituted by 7080561
7080220
$9,44 Unit Price incl. VAT
40
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
41
SCR-SHSEMS-3/8-16X0.375 GR8 Z
7512465
$7,34 Unit Price incl. VAT
42
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
43
HOOP STEERING Substituted by 1011513-067 (400 600 600 SE)
1011513
Not Available
44
BOLT-CARRIAGE(10)
7512262
Not Available
45
HANDLEBAR Substituted by 5224413-067
5224413
Not Available
46
BLOCK HANDLEBAR BLACK
5630187067
$73,49 Unit Price incl. VAT
47
THROTTLE CONTROL ASM.
2010098
Not Available
47
BOLT(10) (SS)
7512254
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
