1
Engine displacement
500
2
Year
2004
3
Trim
A04BG50AA SCRAMBLER 500 4X4 - A04BG50AA/FA
4
Parts Catalog

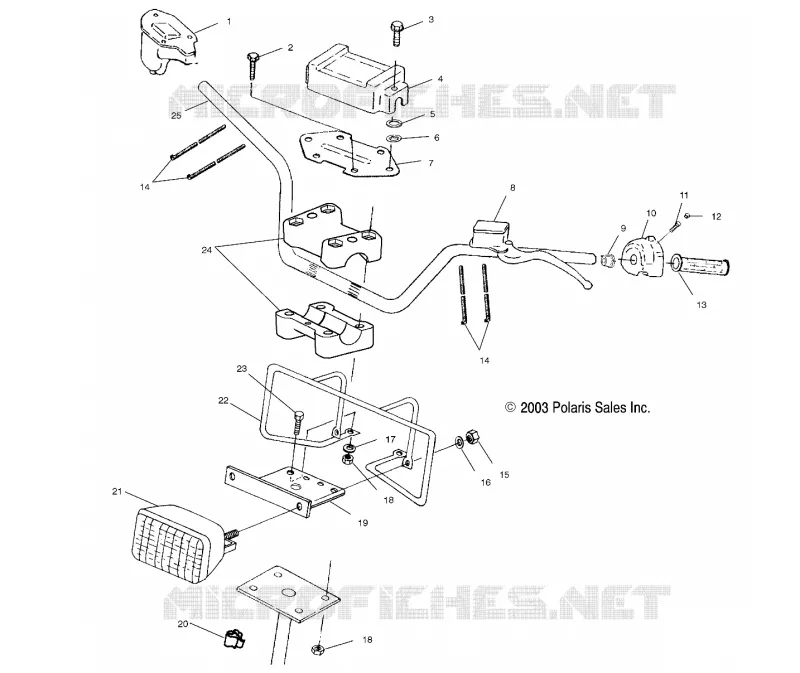

HANDLEBAR HEADLIGHT
5
Parts Diagram
Parts Catalog
PROP SHAFT
by
CONTROLS-MASTER CYLINDER/BRAKE LINE
HANDLEBAR HEADLIGHT
1
2
3
4
5
6
7
1
9
10
11
12
13
14
14
15
16
17
18
18
19
20
21
21
22
23
24
24
25
1
2
3
4
5
6
7
1
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
2
3
3
4
5
6
6
7
7
1
1
9
9
9
9
10
10
10
10
11
11
12
13
14
15
16
17
18
19
20
21
21
22
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
SCREW(10)
7515189
7515189-CO
$2,09 Unit Price incl. VAT
3
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
4
PAD-HANDLE BAR
5433993
Not Available
5
WASHER NYLON
7555932
$4,19 Unit Price incl. VAT
6
RETAINER-BOLT 1/4-20
7670154
$2,09 Unit Price incl. VAT
7
MOUNT-HANDLEBAR PAD
5245051
$9,23 Unit Price incl. VAT
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
Spacer Switch
5433903
Not Available
10
Switch Handlebar Hi/Lo/Off (If built after 2/03/03)
4010592
4019044
$73,49 Unit Price incl. VAT
11
SCREW SET
7517625
$9,44 Unit Price incl. VAT
12
PLUG-HOLE .25 FLUSH (BPF-1/4)
5432952
$12,59 Unit Price incl. VAT
13
Grip Handlebar
5433834070
$52,49 Unit Price incl. VAT
14
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
15
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
16
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
17
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
18
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
19
Bracket Headlight
5242867067
Not Available
20
CLIP CABLE RETAIN (10)
7080631
Not Available
21
FUSE IGNITION 10 AMP
2431016
Not Available
21
BULB H/L 30/30 W.
4030061
Not Available
22
GUARD H/L BLK.
1040579067
Not Available
23
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
24
BLOCK HANDLEBAR PEGGED
5631972
$62,99 Unit Price incl. VAT
24
BLOCK HANDLEBAR
5631973
$62,99 Unit Price incl. VAT
25
Handlebar
5244765067
$194,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
