Engine displacement
500
2
Year
2009
3
Trim
RANGER 4X4 500 EFI - R09HH50AG/AR
4
Parts Catalog
OIL PUMP
5

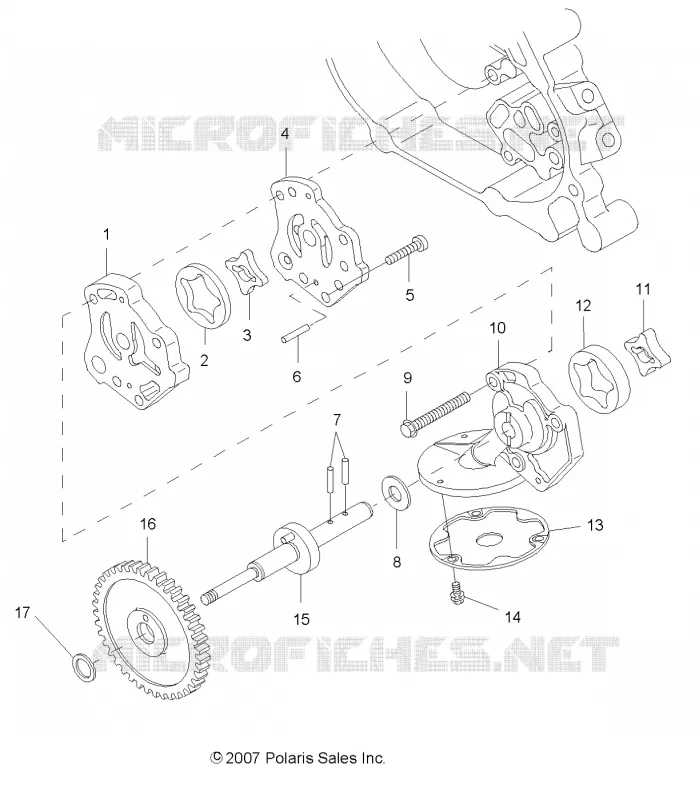

Parts Diagram
Parts Catalog
OIL FILTER
by
ENGINE, STARTING MOTOR
OIL PUMP
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
17
1
CASE #2 OILPUMP
3084946
$136,49 Unit Price incl. VAT
2
ROTOR OUTER FEED (Feed)
3084949
$83,99 Unit Price incl. VAT
3
ROTOR INNER FEED (Feed)
3084948
Not Available
4
Pump Oil Case 1
3090000
Not Available
4
Asm. Oil Pump [Incl. 1-8 10-15]
3089999
Not Available
5
SCREW(10)
3085535
Not Available
6
PIN DOWEL
3084955
Not Available
7
PIN DOWEL
3084954
$13,64 Unit Price incl. VAT
8
WASHER(10)
3084953
$6,29 Unit Price incl. VAT
9
BOLT&WASHER ASM.
3084962
Not Available
10
Pump Oil Case 3
3087265
$152,24 Unit Price incl. VAT
11
ROTOR INNER SCAV. (Scav)
3084950
$62,99 Unit Price incl. VAT
12
ROTOR OUTER
3090307
$89,24 Unit Price incl. VAT
13
STRAINER UNIT OIL
3084956
Not Available
14
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
15
SHAFT PUMP *
3084952
$173,24 Unit Price incl. VAT
16
GEAR 2 PUMP *
3084958
$152,24 Unit Price incl. VAT
17
SPACER (0.8)
3084959
$16,79 Unit Price incl. VAT
17
SPACER (1.0)
3084960
Not Available
17
SPACER (1.2)
3084961
$16,79 Unit Price incl. VAT
