RANGER 4X4 500 EFI - R09HH50AG/AR
4
Parts Catalog

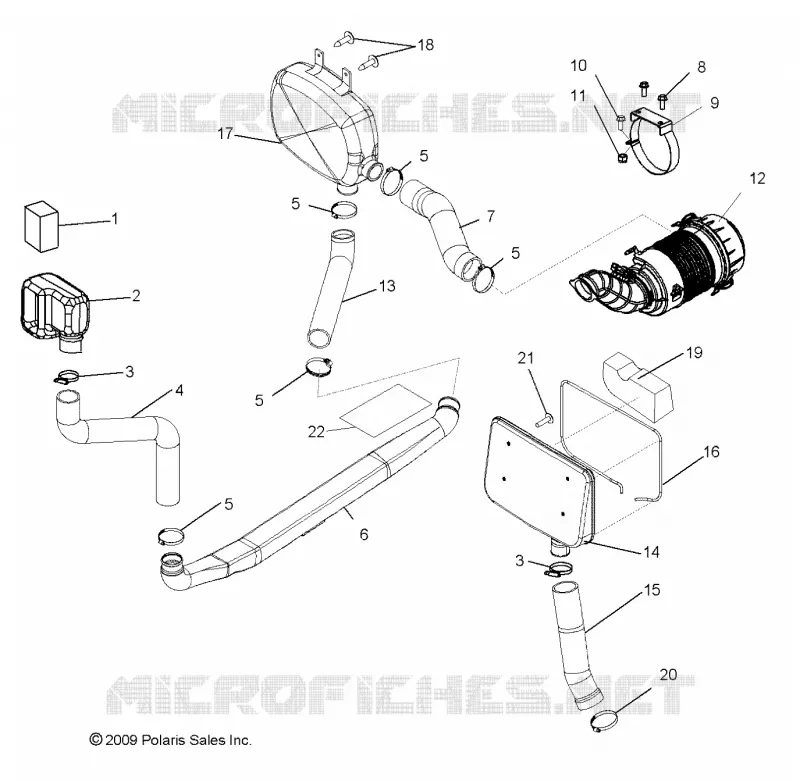

ENGINE, AIR INTAKE
5
Parts Diagram
Parts Catalog
WIRE HARNESSES
by
CYLINDER
ENGINE, AIR INTAKE
1
2
3
3
4
5
5
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
1
Filter Intake
5812253
$34,64 Unit Price incl. VAT
2
Box Baffeling Side
5437958
Not Available
3
CLAMP HOSE S.S.(10)
7080451
$13,64 Unit Price incl. VAT
4
Hose Air Box Front
5413612
5414033
$89,24 Unit Price incl. VAT
5
CLAMP NARROW BAND
7080909
$14,69 Unit Price incl. VAT
6
DUCT AIR INTAKE
5437802
$136,49 Unit Price incl. VAT
7
Hose Engine Intake Rear
5413560
$89,24 Unit Price incl. VAT
8
SCREW(10)
7512399
$10,49 Unit Price incl. VAT
9
Hanger Air Cleaner
1240101
$73,49 Unit Price incl. VAT
10
SCR-5/16-18X3/4 HX/FLG GR5-Y
7515398
$4,19 Unit Price incl. VAT
11
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
Hose Airbox Lower
5413601
5414032
$89,24 Unit Price incl. VAT
14
Asm. Air Baffle Box Clutch [Incl. 21-24]
1240422
Not Available
15
Hose Clutch Intake
5413585
$34,32 Unit Price incl. VAT
16
Seal Clutch Intake
5813373
Not Available
17
BAFFLE ENGINE REAR
5437693
$236,24 Unit Price incl. VAT
18
SCR-1/4-20X3/4-TR/TX/TAP-M
7517916
$11,54 Unit Price incl. VAT
19
Filter Intake Clutch
5813415
$27,29 Unit Price incl. VAT
20
CLAMP BAND NARROW
7080413
$5,76 Unit Price incl. VAT
21
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
$9,44 Unit Price incl. VAT
22
FOIL
5810128
$15,74 Unit Price incl. VAT
22
FOIL TAPE (4X6)
5810129
$4,50 Unit Price incl. VAT
