1
Engine displacement
350
2
Year
1993
3
Trim
euro-350l-6x6-s938739
4
Parts Catalog

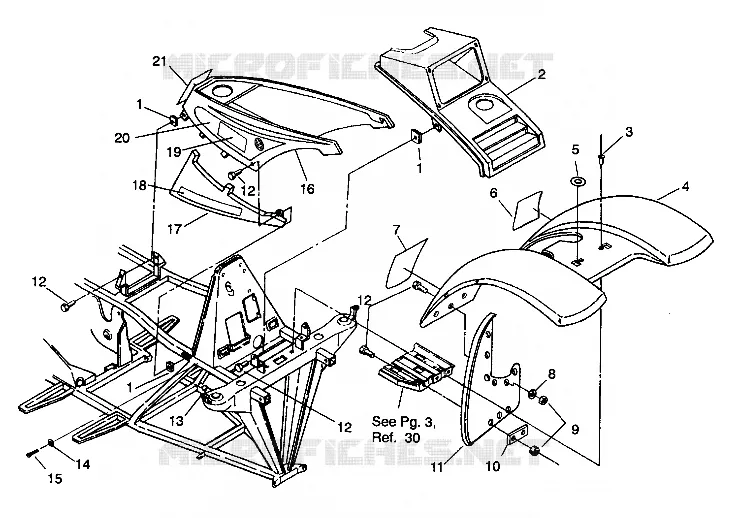

FRONT CAB ASSEMBLY 6X6 350L S938739 (4924362436001A)
5
Parts Diagram
Parts Catalog
MAGNETO ASSEMBLY 6X6 350L W938739 (4924062406050A)
by
REAR CAB ASSEMBLY 6X6 350L S938739 (4924362436002A)
FRONT CAB ASSEMBLY 6X6 350L S938739 (4924362436001A)
1
1
1
2
3
4
5
6
7
8
9
10
10
10
10
11
11
11
11
12
12
12
12
13
14
15
16
17
17
17
17
18
19
20
20
20
20
21
1
NUT SPEED(10)
7670060
$7,34 Unit Price incl. VAT
2
COVER (P.RED) H/L.
5431202136
Not Available
3
RIVET-POP3/16(.251-.375)AL-LFB
7621457
$2,09 Unit Price incl. VAT
4
CAB FR P.RED (Incl. 6 7)
2631549136
Not Available
5
GROMMET
5410437
$5,24 Unit Price incl. VAT
6
DECAL WARNING DISC.
7074201
Not Available
7
DECAL SHIFT PATTERN
7074207
Not Available
8
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
9
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
10
BRKT LH MUD FLAP
5211131067
Not Available
10
BRKT RH MUD FLAP
5211020067
Not Available
11
MUDFLAP RH FRT.(350-6X6)
5850106
Not Available
11
MUDFLAP LH FRT.(350-6X6)
5850105
Not Available
12
BOLT BLACK(10)
7512282
$2,09 Unit Price incl. VAT
13
PLUG RUBBER-HOLE .5DIA(10) Substituted by 5411426
5410012
Not Available
14
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
15
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
16
COVER FUELTANK W/LOUVER
5431263136
Not Available
17
COVER LH(STL.GREY)SIDE Substituted by 5433578-132
5430970132
Not Available
17
COVER RH(STL.GREY)SIDE Substituted by 5433579-132
5430971132
Not Available
18
DECAL #POLARIS#SIDEPANEL
7073812
Not Available
19
DECAL BIGBOSS 6X6
7073816
Not Available
20
DECAL RH TANKSIDE(93-350 6X6)
7073815
Not Available
20
DECAL LH TANKSIDE(350-6X6)
7073814
Not Available
21
DECAL(CPSC) AGE WARN. Substituted by 7074827
7072933
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
