1
Engine displacement
350
2
Year
1993
3
Trim
euro-350l-6x6-s938739
4
Parts Catalog

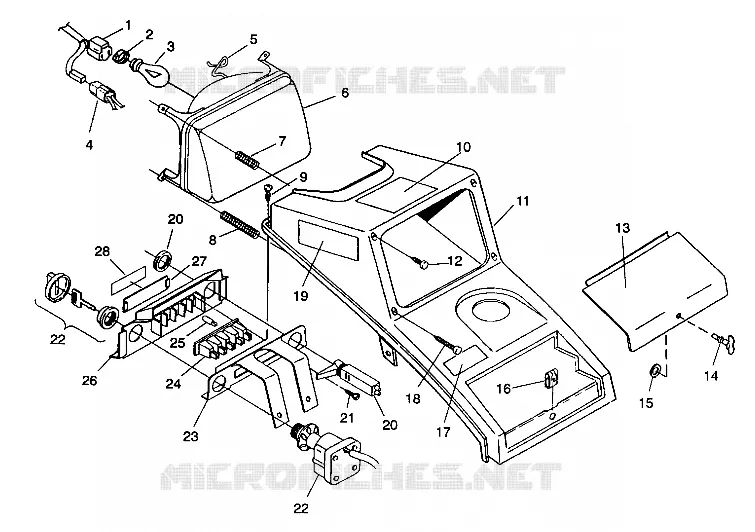

HEADLIGHT ASSEMBLY 6X6 350L S938739 (4924362436010A)
5
Parts Diagram
Parts Catalog
OIL TANK ASSEMBLY 6X6 350L S938739 (4924362436009A)
by
AIR BOX 6X6 350L S938739 (4924362436011A)
HEADLIGHT ASSEMBLY 6X6 350L S938739 (4924362436010A)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
20
20
20
20
20
21
22
22
23
24
25
26
27
28
1
HARNESS HEADLIGHT
2460424
Not Available
2
COVER SOCKET H/L.
4032066
Not Available
3
BULB H/L
4030028
Not Available
4
HSG DUAL FEMALE
4040024
$6,39 Unit Price incl. VAT
5
RETAINER H/L BULB
4032063
Not Available
6
H/L ASM W/BULBSEAL
4032065
Not Available
7
SPRING-ADJ
4032002
Not Available
8
SPRING ADJ. (Incl. Bulb Lens & Gasket)
4032041
Not Available
9
SCREW(10)
7512017
$9,44 Unit Price incl. VAT
10
DECAL CERTIF. ATV Substituted by 7075909
7073464
Not Available
11
COVER OIL TANK&H/L
5431202132
Not Available
12
SCREW ADJ.(10)
4032003
$9,44 Unit Price incl. VAT
13
DOOR ACCESS GRAY STG.
5431201132
Not Available
14
FASTENER 1/4 TURN(10)
7670064
$11,01 Unit Price incl. VAT
15
RING SPLIT RETAINER(10)
7670065
$3,66 Unit Price incl. VAT
16
RECEPTACLE CLIP-ON(10)
7670066
$6,81 Unit Price incl. VAT
17
LABEL #U.S.A.#
7073024
Not Available
18
SCREW ADJUST (ATV)(10)
4032042
Not Available
19
DECAL #350 L/C#
7073813
Not Available
20
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
20
CABLE CHOKE
7080371
$178,49 Unit Price incl. VAT
21
Screw
7511862
Not Available
22
SWITCH IGNITION (See Footnote Below)
4110140
$257,24 Unit Price incl. VAT
23
BRKT IGN. PANEL
5220965067
Not Available
24
STRIP SOCKET
4032037
$43,56 Unit Price incl. VAT
25
BULB
4030042
4080872
$15,74 Unit Price incl. VAT
26
PANEL IGNITION
5430995
Not Available
27
LENS ASM PILOT LIGHT
2652049
Not Available
28
DECAL PANEL [No Longer Available]
7072528
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
