REAR SUSPENSION FOR SPORTSMAN TOURING EPS 850 - A12DN8EAF/EAH/EAR/EAW FROM 2012

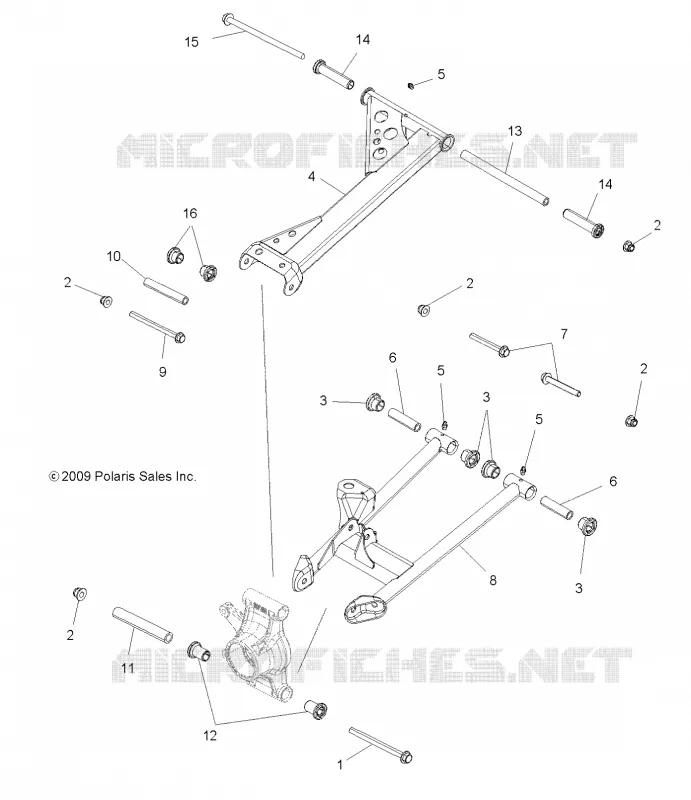

REAR SUSPENSION

1

SCR-HXFL-M10X1.5X140 8.8 ZY3

7518467

$10,49 Unit Price incl. VAT

2

NUT-M10X1.5 HXFLG NYLON INS

7547313

$2,09 Unit Price incl. VAT

3

Bushing Control Arm

5436798

$4,19 Unit Price incl. VAT

4

ARM CONTROL UPPER REAR RH SILVER

1017217385

$125,99 Unit Price incl. VAT

4

WELD-UCA REAR LH BLK

1017216067

$157,49 Unit Price incl. VAT

4

WELD-UCA REAR RH BLK

1017217067

$157,49 Unit Price incl. VAT

4

ARM CONTROL UPPER REAR LH SILVER

1017216385

$157,49 Unit Price incl. VAT

5

FITTING LUBRICATION

7080433

$2,09 Unit Price incl. VAT

6

SHAFT A-ARM 63.5MM

5137346

$31,49 Unit Price incl. VAT

7

SCR-HXFL-M10X1.5X85 8.8 ZY3

7518466

$9,44 Unit Price incl. VAT

8

Arm Control Lower Rear RH Cloud Silver [EAD]

1018216385

$388,49 Unit Price incl. VAT

8

Arm Control Lower Rear LH Black [Built 1/22/11 and After]

1018215067

$188,99 Unit Price incl. VAT

8

Arm Control Lower Rear RH Black [Built 1/22/11 and After]

1018216067

$188,99 Unit Price incl. VAT

8

Arm Control Lower Rear LH Cloud Silver [EAD]

1018215385

Not Available

9

BOLT FLANGE

7518675

$10,49 Unit Price incl. VAT

10

SHAFT PIVOT

5137590

$16,79 Unit Price incl. VAT

11

SHAFT A-ARM LOWER CONTROL ARM [TO 8/2/2023]

5136473

$68,24 Unit Price incl. VAT

12

BUSHING LOWER CONTROL ARM

5437651

$12,59 Unit Price incl. VAT

13

SHAFT-PIVOT 210.27MM ZINC YEL

5137594

$16,79 Unit Price incl. VAT

14

BUSHING-A-ARM LONG 102.36MM

5436973

$9,44 Unit Price incl. VAT

15

SCR-HXFL-M10X1.5X230 8.8 ZY3

7518472

$11,54 Unit Price incl. VAT

16

Bushing Control Arm

5436832

$4,19 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
