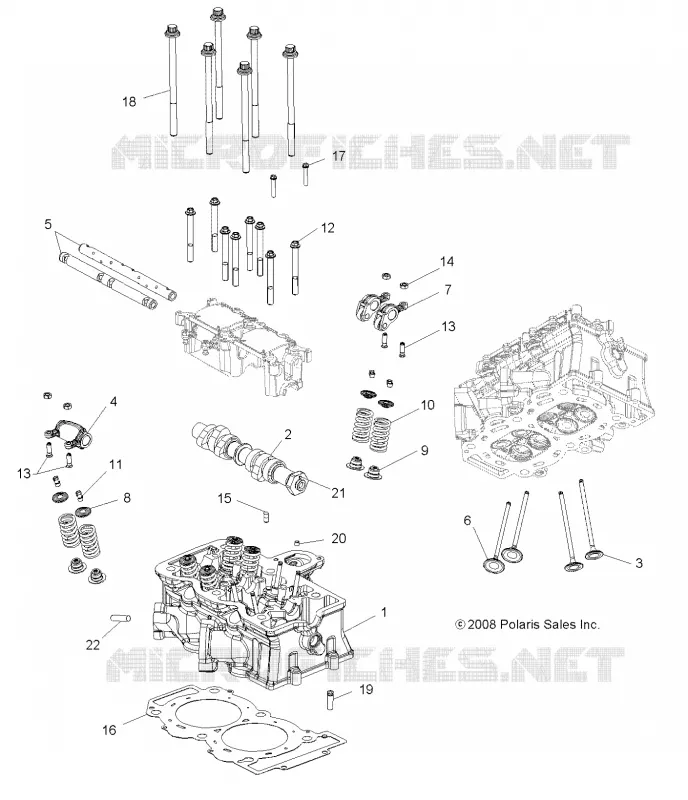

CYLINDER HEAD, CAM AND VALVES FOR SPORTSMAN TOURING EPS 850 - A12DN8EAF/EAH/EAR/EAW FROM 2012

ENGINE, CRANKSHAFT AND PISTON

CYLINDER HEAD, CAM AND VALVES

1

Plug

7052315

$9,23 Unit Price incl. VAT

1

ASM. CYLINDER HEAD [INCL. CAMSHAFT CARRIER PLUG]

3022341

$1 426,94 Unit Price incl. VAT

2

Asm. Cam Shaft [Incl. 21]

3022252

$803,24 Unit Price incl. VAT

3

VALVE EXHAUST

3022272

$62,99 Unit Price incl. VAT

4

Asm. Arm Rocker Exhaust [Incl. Arm Screw Nut]

1204386

$106,56 Unit Price incl. VAT

4

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

5

Shaft Rocker

3021826

$125,99 Unit Price incl. VAT

6

VALVE INTAKE

3022099

$104,99 Unit Price incl. VAT

7

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

7

Asm. Arm Rocker Intake [Incl. Arm Screw Nut]

1204385

$183,74 Unit Price incl. VAT

8

RETAINER VALVE

3021865

$9,44 Unit Price incl. VAT

9

Seal Valve

3610165

$14,69 Unit Price incl. VAT

10

Spring Valve

7043352

$52,49 Unit Price incl. VAT

11

KEEPER-VALVE

7081470

$9,44 Unit Price incl. VAT

12

SCREW

7519293

$13,64 Unit Price incl. VAT

13

SCREW LASH ADJUSTER

5136463

$15,74 Unit Price incl. VAT

14

NUT LOCK

7547335

$6,29 Unit Price incl. VAT

15

JET-OIL OIL PUMP

2540080

$17,84 Unit Price incl. VAT

16

GASKET CYLINDER HEAD

5813345

$104,99 Unit Price incl. VAT

17

SCR-HXFL-M6X1.0X35 8.8 ZY3

7518578

$7,34 Unit Price incl. VAT

18

Bolt Head

7519219

$18,89 Unit Price incl. VAT

19

GUIDE VALVE

3022348

$16,79 Unit Price incl. VAT

20

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

21

Pin Dowel

5135619

$7,34 Unit Price incl. VAT

22

STUD EXHAUST MOUNT [FROM 11/4/2019]

5132040

$10,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
