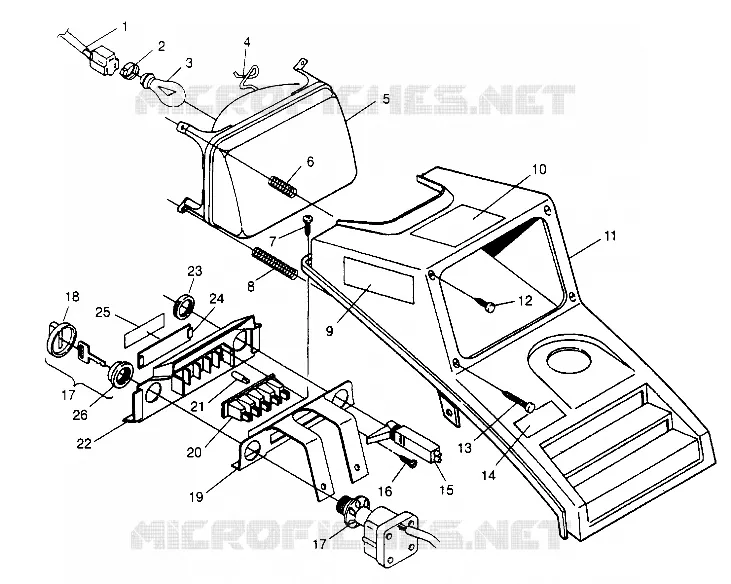

HEADLIGHT ASSEMBLY TRAIL BLAZER W947221 (4926832683A012) FOR TRAIL BLAZER

OIL TANK ASSEMBLY TRAIL BLAZER W947221 (4926832683A011)

AIR BOX TRAIL BLAZER W947221 (4926832683A013)

HARNESS MAIN (TRL BLAZER)

2460486

Not Available

POST STEERING ASM. (Incl. 10 12)

1843043

Not Available

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

COVER SOCKET H/L.

4032066

Not Available

BULB H/L

4030028

Not Available

WASHER-.344X.688X.063 FL-Y

7558402

$1,56 Unit Price incl. VAT

RETAINER H/L BULB

4032063

Not Available

Bracket Steering Post

5222999067

5257028

$62,99 Unit Price incl. VAT

BUSHING STRG.CONSOLE Substituted by 5433416

5431572

5433416

$16,79 Unit Price incl. VAT

H/L ASM W/BULBSEAL

4032065

Not Available

BUSHING STRG.CONSOLE Substituted by 5433415

5431573

5433415

$16,79 Unit Price incl. VAT

SPRING-ADJ

4032002

Not Available

SCREW(10)

7512017

$9,44 Unit Price incl. VAT

FITTING ZERK 90 DEGREE

7080510

$10,49 Unit Price incl. VAT

SPRING ADJ. (Incl. Bulb Lens & Gasket)

4032041

Not Available

BRKT IGN. PANEL

5220965067

Not Available

ASM. REFLECTOR AMBER [TO 7/11/16]

2670134

$19,94 Unit Price incl. VAT

BOLT

7512310

$4,19 Unit Price incl. VAT

FITTING LUBRICATION

7080433

$2,09 Unit Price incl. VAT

DECAL CERTIF. ATV Substituted by 7075909

7073464

Not Available

COVER OILTANK-H/L PURP.

5430973194

Not Available

Pin Cotter

7661633

Not Available

SCREW ADJ.(10)

4032003

$9,44 Unit Price incl. VAT

PLUG GREASE STRG.

5431574

Not Available

BUSHING(10)

7555878

$13,64 Unit Price incl. VAT

SCREW ADJUST (ATV)(10)

4032042

Not Available

O-Ring

5410772

Not Available

LABEL #U.S.A.#

7073024

Not Available

KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN

2200188

$52,49 Unit Price incl. VAT

BUSHING LOWER STRG.

5431570

Not Available

CABLE CHOKE

7080371

$178,49 Unit Price incl. VAT

SCREW SPEC.

5020601

Not Available

Screw

7511862

Not Available

SWITCH IGNITION A.D. (See Footnote Below)

4110139

Not Available

SPACER STRG.POST

5431571

Not Available

COVER KEY Substituted by 5433534

5431964

5465307

$26,24 Unit Price incl. VAT

NUT HEX SLOTTED(10)

7543203

$17,84 Unit Price incl. VAT

RIVET MONOBOLT (50)

7661632

$9,44 Unit Price incl. VAT

BRKT IGN. PANEL

5220965067

Not Available

STRIP SOCKET

4032037

$43,56 Unit Price incl. VAT

BULB

4030042

4080872

$15,74 Unit Price incl. VAT

PANEL IGNITION

5430995

Not Available

Nut Choke Slide

7080229

$36,74 Unit Price incl. VAT

LENS ASM PILOT LIGHT

2652049

Not Available

DECAL PANEL [No Longer Available]

7072528

Not Available

NUT IGN.SWITCH

5432090

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
